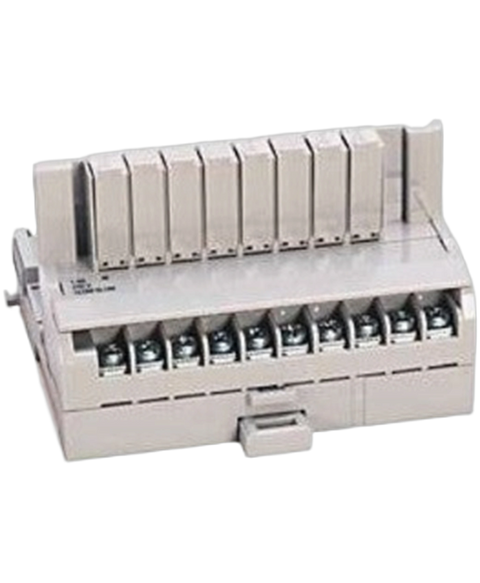

Allen Bradley 1794-TBNF
The 1794-TBNF is a fused terminal base unit that is part of Allen-Bradley’s Flex I,O platform. This terminal base is rated 640 mA @ 5VDC and voltage rating of 24 VDC, 120 AC , DC, and 230 AC , DC and a maximum of 10 Amperes. It comes with Two (2) strips of screw clamp terminals.
This Allen Bradley 1794-TBNF is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Terminal base range and is referenced internally as PartLogic SKU PL26805525568.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex I/O Terminal Base Unit |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-TBNF |
| UPC | 612598137893 |
| Weight | 0.44 lbs (0.20 kg) |
| Terminal Screw Torque | 1.4 Nm |
| Series | Flex I/O |
| Supply Voltage Range max. | 250V DC/AC, 50/60Hz, 10A |
| Module Type | Terminal Base Unit |
| Isolation Voltage | 250V Cotinuous max. |
| No. of Terminal strips | Two (2) |
| Voltage Rating | 24V DC/AC, 120V DC/AC, 230V DC/AC |
| Connection type | Screw clamp |
| Wire Size | 0.34-3.3mm^3 |
| Terminal strip assignment | Top: I/O terminals / COM Bottom: I/O Terminals / +V |
| I/O terminals | Sixteen (16) terminals |
| Common / Supply terminals | Two (2) terminals each |
| Daisy-chaining | Not supported |
| Backplane current draw | 640 mA @ 5VDC |
| Current rating | 10 Amperes |
| Compatible Modules | 1794-OA8; 1794-OA8I;1794-OW8; 1794-OW8XT |
| Brand | Allen Bradley |
