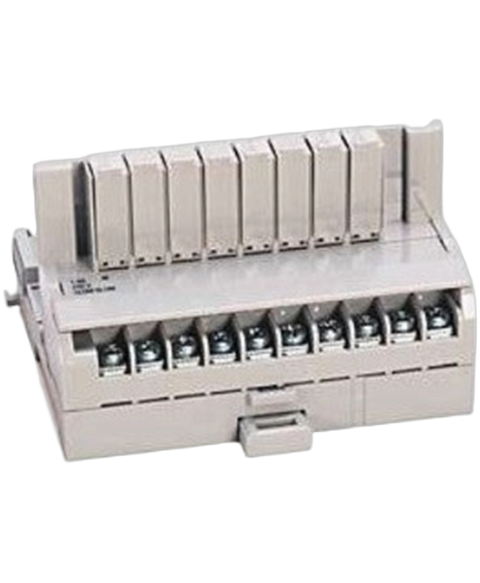

Allen Bradley 1794-TBN
The 1794-TBN terminal base is an Allen-Bradley,Rockwell Automation terminal base from the Flex I,O 1794 series. It has not been approved for use in Class I, Division 2 environments and applications. The 1794-TBN terminal base has 16 I,O terminal points. It can be used to host different Flex I,O 1794 series output modules on a panel or a DIN Rail. The 1794-TBN terminal base unit operates at -20 to 70 degrees Celsius and it can be stored or transported at -40 to 85 degrees Celsius.
This Allen Bradley 1794-TBN is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Terminal base range and is referenced internally as PartLogic SKU PL26801460197.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex I/O Terminal Base Unit |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-TBN |
| UPC | 612598137886 |
| Weight | 0.31 lbs (0.14 kg) |
| Terminal Screw Torque | 1.4 Nm |
| Supply Voltage Range max. | 250V DC/AC, 50/60Hz, 10A |
| Isolation Voltage | 250V Cotinuous max. |
| Voltage Rating | 24V DC/AC, 120V DC/AC, 230V DC/AC |
| Wire Size | 0.34-3.3mm^3 |
| Brand | Allen Bradley |
