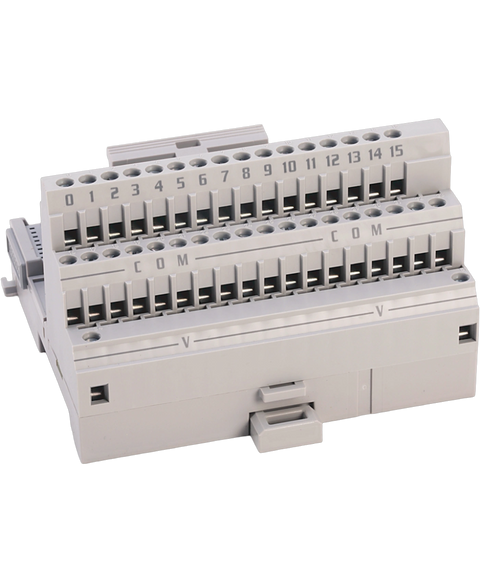

Allen Bradley 1794-TB3T
The 1794-TB3T terminal base is an Allen-Bradley,Rockwell Automation terminal base unit from the Flex I,O 1794 series. It can host the wiring connections for various Flex I,O 1794 input and output modules. The 1794-TB3T terminal base unit has a rated terminal screw torque of 5 to 7 pounds on an inch. It has an open type of enclosure, which means that it is susceptible to damage from debris or liquids if it is not protected by an external enclosure. The 1794-TB3T terminal base unit operates at -4 to 158 degrees Fahrenheit and it can be stored at -40 to 185 degrees Fahrenheit.
This Allen Bradley 1794-TB3T is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Terminal base range and is referenced internally as PartLogic SKU PL27206673251.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex I/O Terminal Base Unit |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-TB3T |
| UPC | 612598170760 |
| Weight | 0.56 lbs (0.26 kg) |
| Terminal Screw Torque | 0.56-0.79 Nm |
| Supply Voltage Range max. | 125V DC/AC, 50/60Hz, 10A |
| Isolation Voltage | 125V Continuous |
| Voltage Rating | 24V DC/AC, 120V DC/AC |
| Wire Size | 0.34-3.3mm^3 |
| Brand | Allen Bradley |
