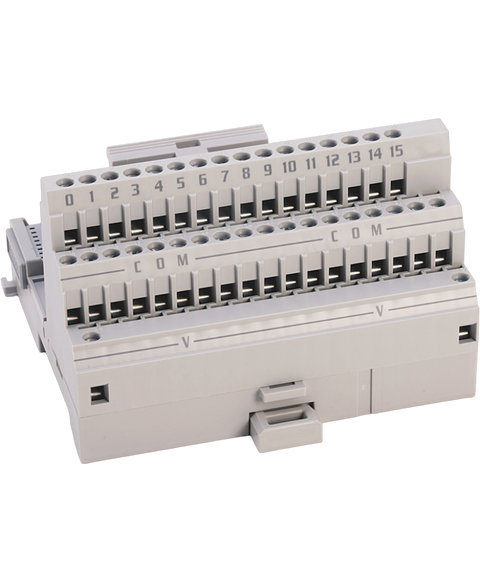

Allen Bradley 1794-TB3S
The Allen-Bradley 1794-TB3S terminal base is a Flex I,O 1794 series terminal base unit. It is made to host input and output modules in an Allen-Bradley Flex I,O 1794 system. The 1794-TB3S terminal base unit supports 120 Volts AC rated common voltage. It can be used with Allen-Bradley Flex I,O 1794 series output modules that have 8 outputs that can be isolated or non-isolated outputs. The 1794-TB3S terminal base unit uses copper wire that can be either solid or stranded.
This Allen Bradley 1794-TB3S is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Terminal base range and is referenced internally as PartLogic SKU PL27203675947.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex I/O Terminal Base Unit |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-TB3S |
| UPC | 612598170906 |
| Weight | 0.50 lbs (0.23 kg) |
| Terminal Screw Torque | 0.56-0.79 Nm |
| Supply Voltage Range max. | 125V DC/AC, 50/60Hz, 10A |
| Isolation Voltage | 125V Continuous |
| Voltage Rating | 24V DC/AC, 120V DC/AC |
| Wire Size | 0.34-3.3mm^3 |
| Brand | Allen Bradley |
