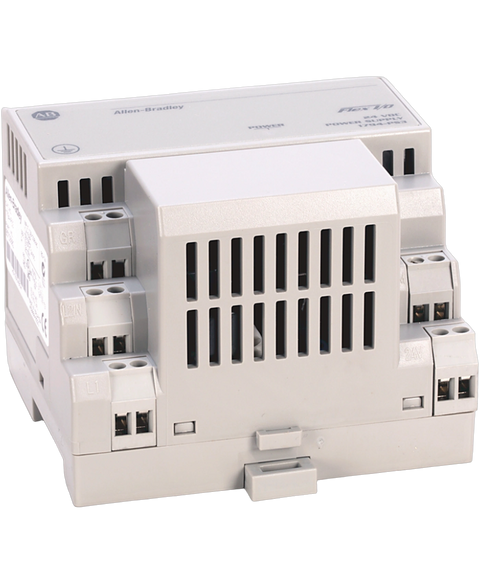

Allen Bradley 1794-PS3
Power supply, flex I,O, 120,220 volt ac input, 86 watt, 3.0A, 24 volt dc output
This Allen Bradley 1794-PS3 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supply range and is referenced internally as PartLogic SKU PL26989513559.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | 1794-PS3 |
| Product type | FLEX I/O power supply module |
| Input voltage range | 85 to 264 VAC |
| Input frequency | 47 to 63 Hz |
| Nominal input ratings | 120 VAC 50/60 Hz 1.7 A max; 230 VAC 50/60 Hz 1.1 A max |
| Maximum input current | 1.9 A |
| Output voltage | 24 VDC nominal |
| Output voltage range | 20.4 to 27.6 VDC |
| Output current | 3 A horizontal mounting; 2.8 A other mountings |
| Output power | 72 W |
| Minimum load | 50 mA |
| Overcurrent protection | 3.2 A |
| Overvoltage protection | 35 VDC |
| Isolation voltage | 2500 VDC |
| Thermal dissipation | 41 BTU/hr |
| Power dissipation, max | 12 W |
| Weight | 0.75 lb (0.34 kg) |
| UPC | 612598206629 |
