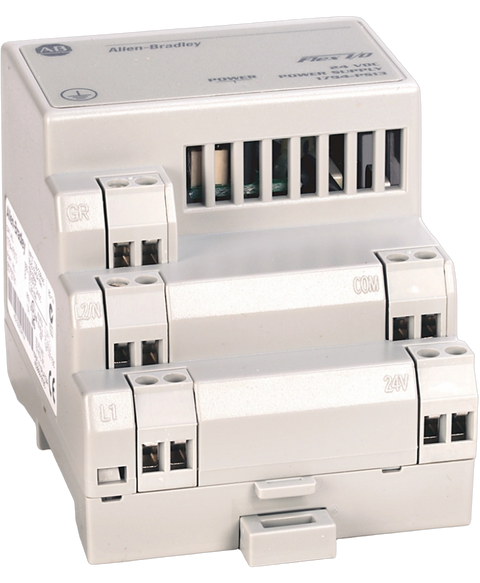

Allen Bradley 1794-PS13
The Allen-Bradley 1794-PS13 is a Flex I,O power supply. This power supply has a nominal supply voltage of 120V AC, 50,60 Hz; 0.6 A max. and 230V AC, 50,60 Hz; 0.42 A max with a voltage range of 85-264VAC, 47-63 Hz. This power supply module is used to provide power to the Flex I,O modules and adapters. It has a maximum input current of 0.7 Amperes and able to withstand an inrush current of 40 A typical, 1 AC cycle @ Vin 265V AC, 55 °C.
This Allen Bradley 1794-PS13 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supply range and is referenced internally as PartLogic SKU PL26805591798.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex I/O DC Power Supply Module |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-PS13 |
| UPC | 612598204847 |
| Weight | 0.50 lbs (0.23 kg) |
| Thermal Dissipation | 23.9 BTU/hr |
| Output Current | 1.3 A |
| Product family | Flex I/O system |
| Product Description | Flex I/O Power Supply |
| Input Voltage range | 85-264VAC |
| Input Frequency range | 47-63 Hz |
| Nominal input voltage | 120V AC, 50/60 Hz; 0.6 A max. 230V AC, 50/60 Hz; 0.42 A max. |
| Maximum input current | 0.7 A |
| Output power | 31.2 Watts |
| Output surge | Sufficient to drive 4 adapters |
| Overcurrent protection | 1.4 A |
| Power dissipation, max | 7 W |
| Supply Voltage nom. | 230V AC, 47-63Hz, 0.6A max. |
| Voltage Range | 85-265V AC |
| Input Current | 0.7 max. |
| Output Voltage nom. | 24V DC |
| Output Voltage Range | 20.4-27.6V DC |
| Minimum Load | 0mA |
| Overvoltage Protection | 35V DC |
| Isolation Voltage | 2500V DC |
| Brand | Allen Bradley |
