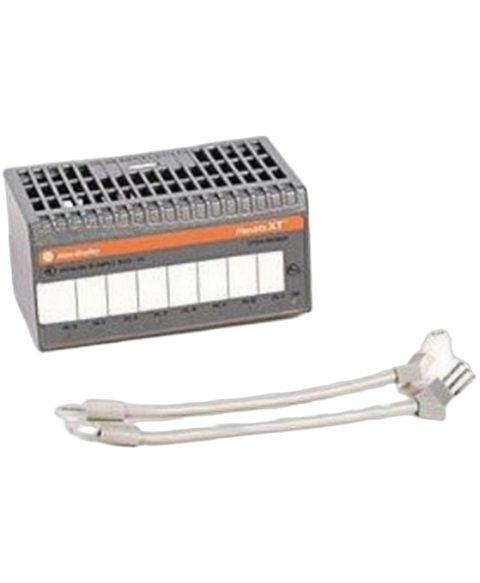

Allen Bradley 1794-OF4IXT
The Allen-Bradley 1794-OF4IXT Flex XT I,O Isolated Output Analog Module has 4 Isolated Outputs, a 15 bits Resolution, and a Sigma Delta Conversion Type. It also operates with a 3mA max. Current Load on Voltage Output and a 50mA FlexBus Current.
This Allen Bradley 1794-OF4IXT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output range and is referenced internally as PartLogic SKU PL26989881135.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex XT I/O Isolated Output Analog Module |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-OF4IXT |
| UPC | 612598592586 |
| Weight | 0.25 lbs (0.11 kg) |
| Outputs | 4 Isolated |
| Resolution | 15 bits |
| Conversion Type | Sigma Delta |
| Update Rate | 2.5/5.0/7.5 ms |
| Current Load on Voltage Output | 3mA max. |
| FlexBus Current | 50mA |
| Isolation Voltage | 120V Continuous |
| Output Current Terminal | 4-20mA |
| Output Voltage Terminal | +/- 10V |
| Thermal Dissipation | 6.8 BTU/hr. @ 31.2V DC max. |
| Brand | Allen Bradley |
