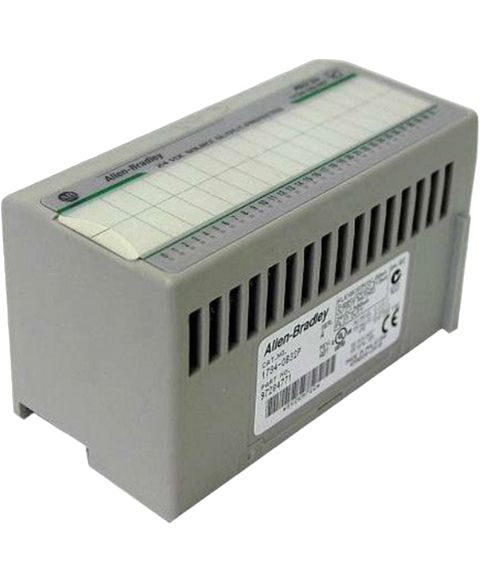

Allen Bradley 1794-OB32P
The 1794-OB32P is an Allen-Bradley Flex I,O electronically protected discrete output module. This module comes with individual channel protection, having thirty-two (32) 24 Volt DC sourcing output channels. It is compatible for use with the 1794-TB32 and 1794-TB32S terminal base units. It has an output current rating of 14.0 Amperes per module, with 6 Amperes total for channels 0...15 and 8 Amperes total for channels 16-31.
This Allen Bradley 1794-OB32P is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output range and is referenced internally as PartLogic SKU PL27214977269.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex I/O Digital DC Output Module |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-OB32P |
| UPC | 612598286034 |
| Weight | 0.25 lbs (0.11 kg) |
| Output Current Rating | 14.0 A max per module (6 A total for channels 0...15; 8 A total for channels 16...31) |
| Product Description | Flex IO DC Output Module |
| Number of Outputs | Thirty-Two (32) Channels |
| Output circuit type | Sourcing |
| Terminal base | 1794-TB32 and 1794-TB32S |
| ON state Voltage, min | 10VDC |
| ON state Voltage, max. | 31.2VDC |
| ON state Voltage, nom | 24VDC |
| Enclosure | Open-type |
| Mounting | DIN Rail |
| Wire Size | Determined by installed terminal base |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Vibration | 5g @ 10 to 500 Hz |
| Operating Shock | 30 g |
| Outputs | 32 Sourcing Current |
| On-state Current max. | 500mA per Channel |
| On-state Voltage Drop max. | 0.5V DC |
| Off-state Leakage Current max. | 0.5mA |
| Isolation Voltage | 50V Continuous |
| Flexbus Current | 80mA @ 5V DC |
| Power Dissipation | 5.3W @ 31.2V DC max. |
| Thermal Dissipation | 18.1 BTU/hr. @ 31.2V DC max. |
| Brand | Allen Bradley |
