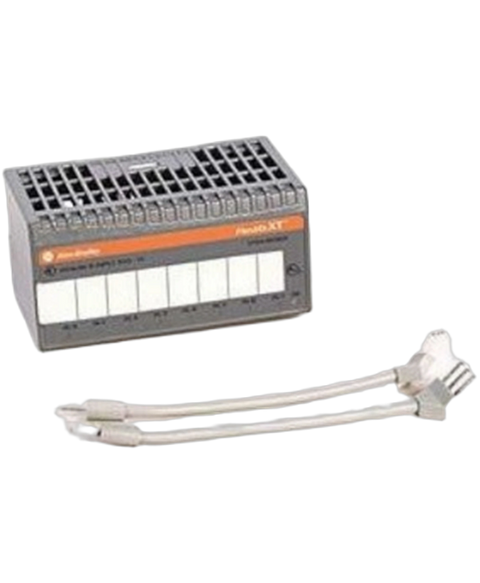

Allen Bradley 1794-IF4IXT
The Allen-Bradley,Rockwell Automation 1794-IF4IXT input module is a Flex I,O 1794 series input module. It features 4 isolated analog inputs. The 1794-IF4IXT input module uses the Sigma Delta conversion method. At 31.2 Volts DC rated voltage, this input module dissipates 2 Watts of power and 6.8 BTU per hour of heat during operation. The 1794-IF4IXT input module has a wide ambient temperature range of -20 to 70 degrees Celsius.
This Allen Bradley 1794-IF4IXT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26964807989.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex XT I/O Isolated Input Analog Module |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-IF4IXT |
| UPC | 612598592579 |
| Weight | 0.31 lbs (0.14 kg) |
| Inputs | 4 Isolated |
| Resolution | 16 bits |
| Conversion Type | Sigma Delta |
| Input Current Terminal | 4-20mA |
| Input Voltage Terminal | +/- 10V |
| FlexBus Current | 50mA |
| External DC Power Supply | 24V DC nom. |
| Isolation Voltage | 120V Continuous |
| Power Dissipation | 2.0W @ 31.2V DC max. |
| Thermal Dissipation | 6.8 BTU/hr. @ 31.2V DC max. |
| Brand | Allen Bradley |
