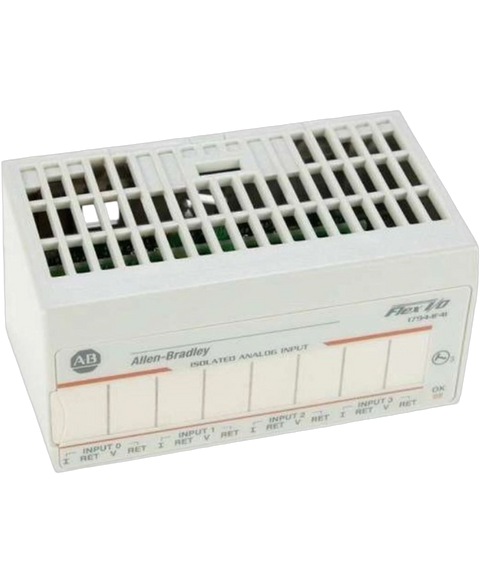

Allen Bradley 1794-IF4I
Analog input module, flex I,O, 4 channel, current,voltage input, isolated, 16-bit resolution, open style, screw connection, DIN rail mount, IP20
This Allen Bradley 1794-IF4I is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26805644256.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | ALLEN BRADLEY |
| Model Number | 1794-IF4I |
| Product Type | Flex I/O isolated analog input module |
| Inputs | 4 isolated single-ended channels |
| Signal Ranges | 0–20 mA, 4–20 mA, ±20 mA; ±10 V, 0–10 V, ±5 V, 0–5 V |
| Resolution | 16 bits |
| Conversion Type | Sigma delta |
| Mounting | DIN rail |
| Protection Rating | IP20 open style |
| External DC Supply (Nom) | 24 VDC |
| External DC Supply Range | 19.0–31.2 VDC (includes 5% AC ripple) |
| FlexBus Current | 50 mA |
| Power Dissipation, Max | 2.0 W @ 31.2 VDC |
| Thermal Dissipation, Max | 6.8 BTU/hr @ 31.2 VDC |
| Isolation Voltage | 120 V continuous |
| Operating Temperature | 0 to 55 °C (32 to 131 °F) |
| Storage Temperature | −40 to 85 °C (−40 to 185 °F) |
| Vibration | 5 g @ 10 to 500 Hz |
| Operating Shock | 30 g |
| Compatible Terminal Bases | 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, 1794-TBN |
| Weight | 0.31 lb (0.14 kg) |
| UPC | 612598171576 |
| UNSPSC | 32151602 |
