Allen Bradley 1794-IE8H

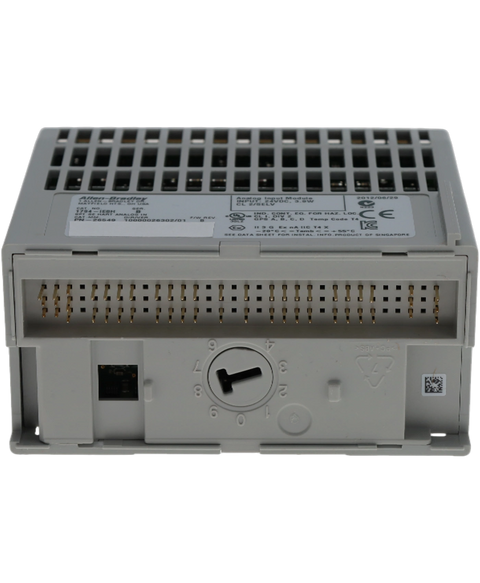

The Allen-Bradley 1794-IE8H is a Flex I,O analog input module. It has Eight (8) Voltage , Current single-ended input channels. It receives analog signals such as 0-20 mA and 4-20 mA. It is compatible for use with Flex I,O communication adapters and installed to terminal bases such as 1794-TB3G or 1794-TB3GS.
This Allen Bradley 1794-IE8H is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26946929003.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex I/O HART Analog Module |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-IE8H |
| UPC | 612598323883 |
| Weight | 0.31 lbs (0.14 kg) |
| Resolution | 16 bits |
| Conversion Type | Successive Approximation |
| Product Description | Flex IO HART Module |
| No. of inputs | Eight (8) Single Ended; non-isolated |
| Absolute accuracy | 0.1% Full Scale @ 20 °C (68°F) |
| Accuracy drift with temperature | 0.05% Full Scale for 0 °C...55 °C (32...131 °F) |
| Step Response to 99% | 80 ms |
| Terminal base | 1794-TB3G and 1794-TB3GS |
| Indicators | 8 red fault indicators, 8 yellow channel indicators and 1 green for power. |
| External DC supply, nom | 24V DC |
| External DC supply range | 19.0 to 31.2V DC (includes 5% AC ripple) |
| Mounting | DIN Rail |
| Wire Size | Determined by installed terminal base |
| Inputs | 8 Single-ended |
| Data Format | Configurable |
| Functional Data Range | >17V @ 22mA |
| FlexBus Current External Input | 5V DC 80mA |
| Enclosure Type Rating | None (open-style) |
| Isolation Voltage | 50V Continuous |
| Power Dissipation | 3.9W @ 31.2V DC max. |
| Thermal Dissipation | 13.5 BTU/hr. @ 31.2V DC |
| Brand | Allen Bradley |
