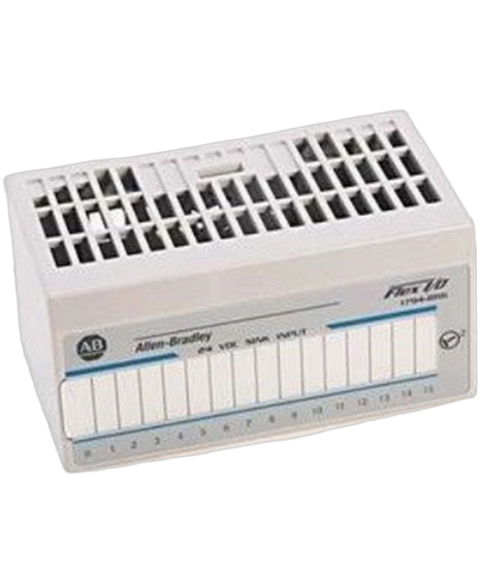

Allen Bradley 1794-IB16
The Allen-Bradley 1794-IB16 is a Flex IO discrete input module. This module features Sixteen (16) 24VDC sinking input channels. It is compatible with a variety of terminal base units such as 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, 1794-TB37DS. It is compatible with any 1794 Flex IO adapters to implement distributed I,O application.
This Allen Bradley 1794-IB16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26805568868.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex I/O Digital Input Modules |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-IB16 |
| UPC | 612598137787 |
| Weight | 0.19 lbs (0.09 kg) |
| Product Description | Flex IO DC Input Module |
| Terminal base | 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794- TBKD, 1794-TB37DS |
| Number of Inputs | Sixteen (16), sinking inputs |
| ON state Voltage, min | 19.2 VDC |
| ON state Voltage, max. | 31.2 VDC |
| ON state Voltage, nom | 24 VDC |
| Indicators | 16 Yellow status indicators |
| Mounting | DIN Rail |
| Wire Size | Determined by installed terminal base |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Vibration | 5g @ 10 to 500 Hz |
| Operating Shock | 30 g |
| Inputs | 16 Current Sinking |
| On-state Current min. | 2.0mA min. |
| On-state Current max. | 12.0mA |
| Off-state Voltage max. | 5V DC |
| Off-state Current max. | 1.5mA |
| Nominal Input Impedance | 4.6 k? |
| Flexbus Current | 30mA @ 5V DC |
| Power Dissipation | 6.1W @ 31.2V DC max. |
| Brand | Allen Bradley |
