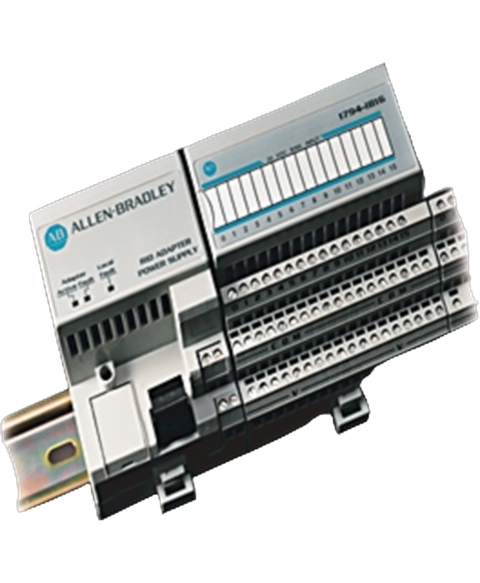

Allen Bradley 1794-IA16
The Allen-Bradley 1794-IA16 is a Flex I,O AC input module. This module has Sixteen (16) non-isolated input channels with input voltage range of 74VCA-132VAC. It is compatible for use with Flex I,O communication adapters and terminal bases such as 1794-TB3, 1794-TB3S, 1794-TBN(2), 1794-TB3K, 1794-TB3SK, 1794-TBNK.
This Allen Bradley 1794-IA16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26801460996.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex I/O AC Digital Input Module |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-IA16 |
| GTIN | 10612598179913 |
| Weight | 0.25 lbs (0.11 kg) |
| Product Family | Flex I/O |
| Product Description | AC Input Module |
| Number of Inputs | 16, non-isolated |
| Terminal base | 1794-TB3, 1794-TB3S ,1794-TBN, 1794-TB3K, 1794-TB3SK and 1794-TBNK |
| Keyswitch Position | 8 |
| ON state Voltage, min | 74VAC |
| ON state Voltage, max. | 132VAC |
| OFF state Voltage, max | 20VAC |
| Indicators | 16 Yellow status indicators |
| Mounting | DIN Rail |
| Wire Size | Determined by installed terminal base |
| Enclosure type rating | None (open-style) |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Vibration | 5g @ 10 to 500 Hz |
| Operating Shock | 30 g |
| Inputs | 16 Nonisolated |
| On-state Current min. | 5.49 mA |
| On-state Current max. | 14.8 1mA |
| Off-state Current min. | 2.9 mA |
| Nominal Input Current | 12 mA at 120 Volts AC |
| Flexbus Current | 20 mA |
| Power Dissipation | 6.4 Watts at 132 Volts AC max. |
| UPC | 10612598179913 |
| UNSPSC | 32151602 |
| Brand | Allen Bradley |
