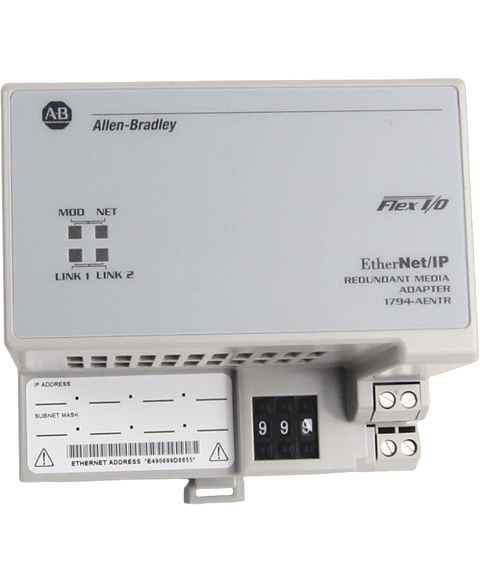

Allen Bradley 1794-AENTR
The Allen-Bradley 1794-AENTR is a Flex I,O communication adapter. This adapter is a DIN rail mounted device, which features Two (2) Ethernet communication port, used for connection Flex I,O rack to a central, ethernet enabled controller. It supports 10,100 Mbps communication rate with an input voltage requirement of 19.2 - 31.2 VDC. It supports installation of up to Eight (8) Flex I,O modules.
This Allen Bradley 1794-AENTR is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication range and is referenced internally as PartLogic SKU PL26801440384.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Flex I/O Dual Port Ethernet/IP Adapter Module |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-AENTR |
| UPC | 885630106144 |
| Weight | 0.56 lbs (0.26 kg) |
| Power Dissipation | 6.1 W @ 19.2V DC |
| Thermal Dissipation | 20.8 BTU/hr @ 24V DC |
| Product Description | Redundant Ethernet Adapter Module |
| Communication Port | Two (2) RJ45 |
| Supported Protocol | Ethernet I/P |
| Supported topologies | Linear |
| Data Transfer speed | 10 to 100 Mbps |
| Indicators | Mod Status; Network Status; Link1 Status; Link2 Status |
| Mounting | DIN Rail |
| Ethernet cable | RJ45 Cat.5 |
| Wire Size | 0.34…2.5 mm2 (22…12 AWG) stranded copper wire rated at 75 °C (167 °F) or higher, 1.2 mm (3/64 in.) insulation max |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Vibration | Tested 5 g @ 10-500Hz per IEC 68-2-6 |
| Operating Shock | 30 g peak acceleration, 11(+1)ms pulse width |
| Power Consumption | 500 mA 400 mA @ 24V DC |
| I/O Capacity | 8 Modules |
| Communication Rate | 10/100 Mbps |
| Input Voltage Range nom. | 19.2 to 31.2 Volts DC |
| Input Voltage nominal | 24 Volts DC |
| Inrush Current | 18 Amps for 2 milliseconds |
| Enclosure Type Rating | None (open-style) |
| Isolation Voltage | 50 Volts Continuous |
| Flexbus Current | 640 mA at 5 Volts DC maximum |
| Brand | Allen Bradley |
