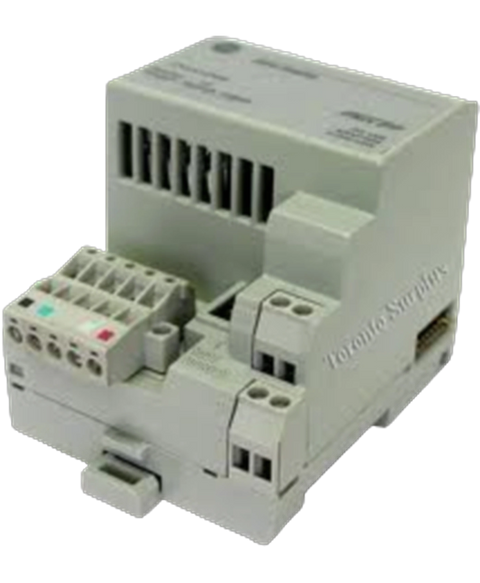

Allen Bradley 1794-ADN
The Allen-Bradley 1794-ADN is a Flex I,O communication module. This module is a DeviceNet communication adapter, used with 1794 Flex IO product Family. It connects a Flex I,O rack to the central DeviceNet scanner to allow I,O data exchange. It supports DIN rail or Panel mounting.
This Allen Bradley 1794-ADN is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication range and is referenced internally as PartLogic SKU PL27209261955.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | DeviceNet Adapter |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-ADN |
| UPC | 612598140169 |
| Weight | 0.38 lbs (0.17 kg) |
| Product Description | 1794 DeviceNet Adapter Module |
| Communication Port | One (1) DeviceNet |
| Data Transfer speed | 125KB; 250KB; 500KB |
| Indicators | Mod/Net Status - red/grn; I/O Status - red/grn |
| Mounting | DIN Rail; Panel Mounting |
| DeviceNet cable | Belden YR-29832 or equivalent |
| Wire Size | 12 gauge stranded maximum, 3/64 inch (1.2mm) insulation max. |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Vibration | Tested 5 g @ 10-500Hz per IEC 68-2-6 |
| Operating Shock | 30 g peak acceleration, 11(+1)ms pulse width |
| Voltage | 24 Volts DC |
| Input Voltage Range | 19.2 to 31.2 Volts DC |
| Flexbus Output Current | 640 mA maximum 5 Volts DC |
| Isolation Voltage | 50 Volts Continuous |
| Power Consumption | 90 mA maximum |
| Power Dissipation | 7.6W maximum at 19.2 Volts DC |
| Communication Rate | 125KB-500KB |
| Brand | Allen Bradley |
