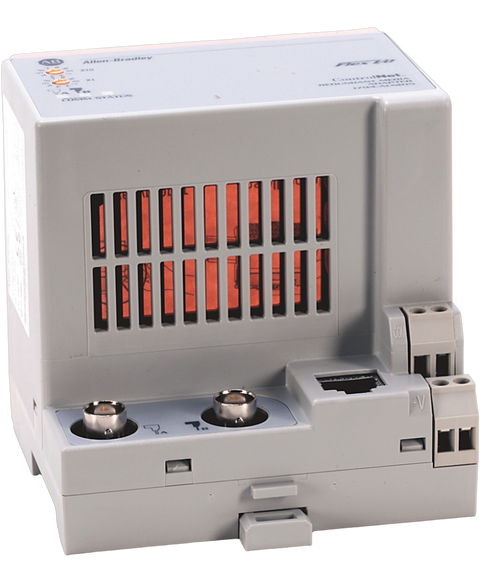

Allen Bradley 1794-ACNR15
The Allen-Bradley 1794-ACNR15 is a Flex I,O communication adapter. This adapter is a DIN rail mounted device, which features dual ControlNet port, used in implementation of Redundant ControlNet data highway, It supports up to Eight (8) Flex IO modules. It supports ControlNet version 1.5
This Allen Bradley 1794-ACNR15 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication range and is referenced internally as PartLogic SKU PL26805597640.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Redundant Media ControlNet Adapter |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-ACNR15 |
| UPC | 612598180592 |
| Weight | 0.56 lbs (0.26 kg) |
| Power Dissipation | 3.4W maximum @ 19.2V dc |
| Product Description | Redundant ControlNet Adapter Module |
| Communication Port | Two (2) ControlNet BNC |
| Data Transfer speed | 5 Mbps |
| Indicators | Comm A: red/grn Comm B: red/grn I/O status- red/grn |
| Mounting | DIN Rail |
| ControlNet Protocol | V 1.25 |
| ControlNet cable | 3.31 mm2 (12 AWG) stranded max 1.2 mm (3/64 in.), insulation, max |
| Operating Temperature | -20…55 °C -4…131 °F) |
| Surrounding Temperature | 55 °C (131 °F) |
| Vibration | IEC 60068-2-6 (Test Fc, Operating) IEC 60068-2-6 (Test Fc, Operating): 5 g @ 10…500 Hz |
| Operating Shock | IEC 60068-2-27 (Test Ea, Unpackaged Shock): 30 g |
| Power Consumption | 400mA maximum from external 24V supply |
| Thermal Dissipation | 15.7 BTU/hr @ 19.2V dc |
| Voltage | 24 V DC |
| Input Voltage Range | 19.2-31.2V DC |
| Flexbus Output Current | 640 mA max. |
| Isolation Voltage | 850V DC |
| Inrush Current | 23A for 2ms |
| Communication Rate | 5M bps |
| Current Draw | 450mA max. |
| Brand | Allen Bradley |
