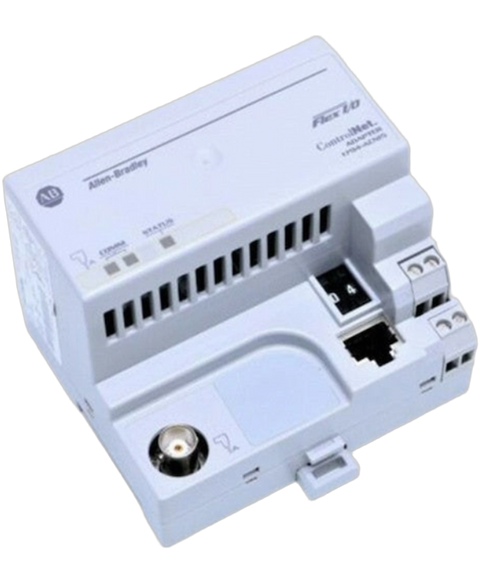

Allen Bradley 1794-ACN15
The Allen-Bradley 1794-ACN15 is a Flex I,O communication adapter. This module is a supports ControlNet communication protocol and enables ControlNet network connectivity. This module is part of the 1794 Flex IO product Family. It has One (1) ControlNet port that supports communication rate of 5 Mbps and supports up to Eight (8) Flex I,O modules.
This Allen Bradley 1794-ACN15 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication > Flex i o range and is referenced internally as PartLogic SKU PL26801425020.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Redundant Media ControlNet Adapter |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-ACN15 |
| UPC | 612598180608 |
| Weight | 0.50 lbs (0.23 kg) |
| Product Description | 1794 ControlNet Adapter Module |
| Communication Port | One (1) ControlNet |
| Indicators | Comm A - red/grn; Comm B- red/grn; I/O Status - red/grn |
| Mounting | DIN Rail; Panel Mounting |
| DeviceNet cable | Belden RG-6/U or equivalent |
| Wire Size | Single wire connection: 0.33... 2.5 mm2 (22...12 AWG) solid or stranded copper wire rated at 75 °C (167 °F) or greater 1.2 mm (3/ 64 in.) insulation max Double wire connection: 0.33... 1.3 mm2 (22...16 AWG) solid or stranded (not intermixed) copper wire rated at 75 °C (167 °F) or greater 1.2 mm (3/64 in.) insulation max |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Vibration | Tested 5 g @ 10-500Hz per IEC 68-2-6 |
| Operating Shock | 30 g peak acceleration, 11(+1)ms pulse width |
| Voltage | 24 Volts DC |
| Input Voltage Range | 19.2 to 31.2 Volts DC |
| Flexbus Output Current | 640 mA maximum |
| Isolation Voltage | 850 Volts DC |
| Inrush Current | 23A for 2 milliseconds |
| Power Dissipation | 4.6 W maximum at 19.2 Volts DC |
| Communication Rate | 5 Mbps |
| Current Draw | 450 mA maximum |
| Brand | Allen Bradley |
