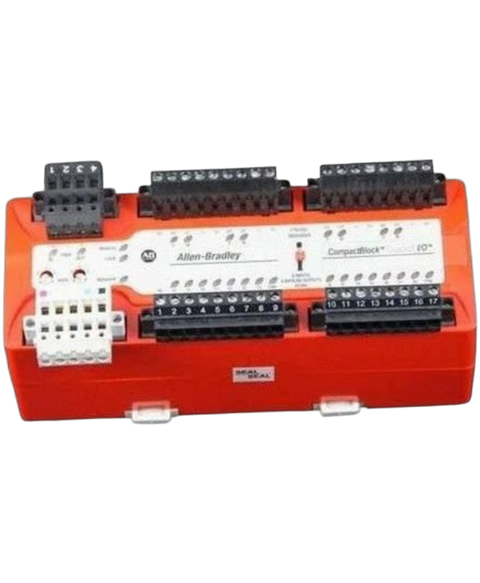

Allen Bradley 1791ES-IB8XOBV4
The Allen-Bradley 1791ES-IB8XOBV4 is a Guard I,O Ethernet safety module. This module features Eight (8) current sinking Safety inputs with minimum in-state voltage of 11VDC and minimum on-state current of 3.3 mA. The input types are IEC 61131-2 Type 3. It also has Four (4) Current sourcing outputs with 0.7 A per output; 8 A total module @ 40 °C (104 °F) and 6 A total module @ 60 °C (140 °F). This module comes with One (1) Ethernet I,P port for network connection.
This Allen Bradley 1791ES-IB8XOBV4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Safety > Guard i o range and is referenced internally as PartLogic SKU PL26963448656.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | CompactBlock Guard I/O EtherNet/IP Safety Modules |
| Product Line | Guard I/O 1791ES and 1791DS |
| Part Number | 1791ES-IB8XOBV4 |
| UPC | 612598346790 |
| Weight | 1.00 lbs (0.45 kg) |
| Product Family | CompactBlock Guard I/O |
| No. of Inputs | Eight (8) Current sinking inputs |
| Voltage, on-state Input, min | 11V DC Current |
| On-state Input, min | 3.3 mA Voltage |
| Off-state input, max | 5V DC Current, |
| Off-state, max | 1.3 mA |
| No. of outputs | Four (4) dual channel |
| Output types | Current sourcing/current sinking - bipolar pair |
| Output current rating | 2 A max per point; 8 A total module @ 40 °C (104 °F) 6 A total module @ 60 °C (140 °F) |
| Short circuit detection | Yes (short high and low and cross-circuit fault detect) |
| Short circuit protection | Electronic |
| Power Consumption | 250 mA at 24 Volts DC |
| Operating Voltage Range | 19.2 to 28.8 Volts DC |
| Number of Inputs | 8 |
| Input Type | Single-Channel |
| On-State Input Voltage | 11 Volts DC min. |
| Off-State Input Voltage | 5 Volts DC max. |
| Number of Outputs | 4 |
| Output Type | Current Sourcing/Current Sinking Pair |
| Brand | Allen Bradley |
