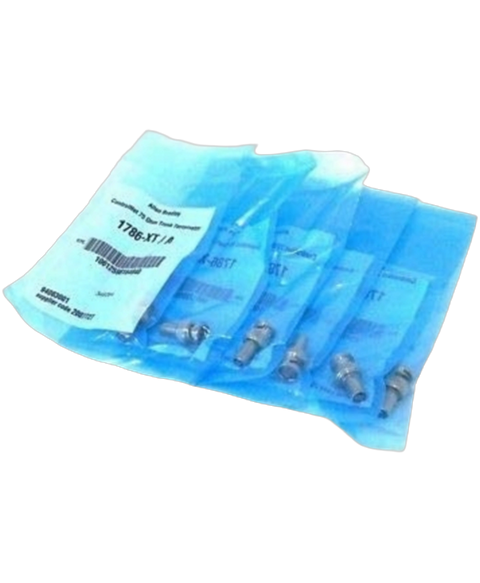

Allen Bradley 1786-XT
The 1786-XT from Allen Bradley is a specialized connector in the Bulletin 1786 series. Designed primarily for ControlNet communication, it features a coaxial BNC plug with a terminal resistor and maintains a 75-ohm impedance for reliable signal transmission.
This Allen Bradley 1786-XT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication > Controlnet range and is referenced internally as PartLogic SKU PL27192319298.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Connector |
| Product Line | 1786 Repeaters |
| Part Number | 1786-XT |
| UPC | 612598164943 |
| Weight | 3.00 lbs (1.36 kg) |
| Connector Type | Coaxial BNC Plug, Terminal Resistor |
| Communication Option | ControlNet |
| Impedance | 75 ohms |
| IP Rating | IP 20 |
| Required Operating Locations | Nonhazardous Locations |
| Compatible Media Systems | ControlNet Media Systems |
| Marine Certified | Yes |
| Storage Temperature | -20 to 80 degrees Celsius |
| Brand | Allen Bradley |
