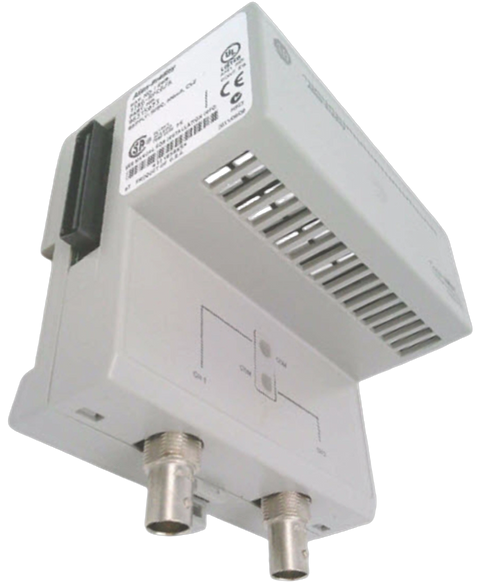

Allen Bradley 1786-RPCD
The 1786-RPCD is a ControlNet Dual Copper repeater module by Allen-Bradley. This module is a DIN Rail mounted device that comes with Two (2) ControlNet coaxial (copper) ports supporting Series, Star, and Redundant ControlNet network topologies. It has Channel 1 and Channel 2 LED status indicators for depicting channel activity. This module has a backplane current draw of 400 mA at 5VDC. This module is used with the 1786-RPA,B repeater adapter.
This Allen Bradley 1786-RPCD is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication > Controlnet range and is referenced internally as PartLogic SKU PL26945002908.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Communication module |
| Product Line | 1786 Repeaters |
| Part Number | 1786-RPCD |
| UPC | 612598206810 |
| Weight | 0.31 lbs (0.14 kg) |
| Repeater Type | Coaxial Repeater Module |
| Fiber Type | RG6 copper coax |
| Product Description | ControlNet Dual copper repeater module |
| Fiber Operating Wavelength | NA |
| Supported Protocol | ControlNet |
| Attenuation Levels | NA |
| No. of Ports | Two (2) ControlNet ports |
| Input Power | 5V DC |
| Supported topologies | Linear, Star, Redundant topologies |
| Typical Repeater Distance | 0-1km |
| Compatible repeater adapter | 1786-RPA/B |
| Backplane Current Draw | 400 mA |
| No. of 1786-RPCD per adapter | Up to Four (4) 1786-RPCD |
| LED indicators | Channel 1 and Channel 2 status indicators |
| Mounting | DIN Rail |
| Power consumption | 2 Watts, max. |
| Power Dissipation | 2 Watts, max. |
| Enclosure rating | None (open-style) |
| Brand | Allen Bradley |
