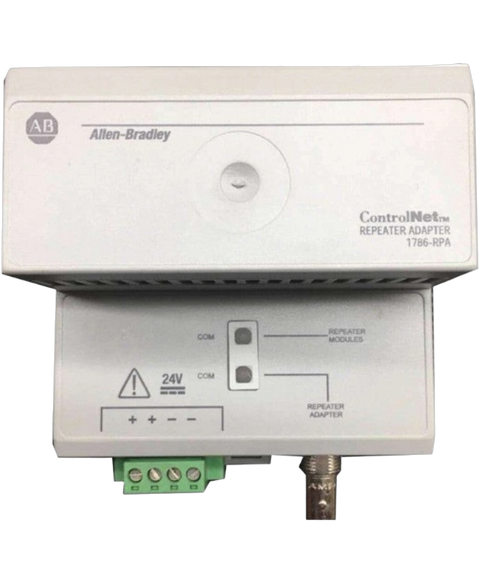

Allen Bradley 1786-RPA
The Allen-Bradley 1786-RPA is a ControlNet Modular Repeater Adapter. This module is used to extend the length of the ControlNet network. Tit has One (1) Coax cable port, powered by a 24VDC power supply. This module supports direct panel or DIN rail mounting and compatible for horizontal and vertical mounting.
This Allen Bradley 1786-RPA is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication > Controlnet range and is referenced internally as PartLogic SKU PL26801462202.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | ControlNet Repeater Adapter Module |
| Product Line | 1786 Repeaters |
| Part Number | 1786-RPA |
| UPC | 612598171095 |
| Weight | 0.50 lbs (0.23 kg) |
| Product Family | ControlNet communication |
| No. of Coax Channel | One (1) |
| Mounting | Panel Mount / DIN Rail |
| Mounting orientation | Vertical / Horizontal |
| Supported Topologies | Star, Linear, Ring, Point to Point |
| Power Supply, nominal | 24VDC |
| Power Supply, range | 18-36VDC |
| Power Consumption, max | 16.8 W |
| Power Dissipation, max | 8.8 W |
| Backplane output current, max | 1.6A @ 5V DC, max |
| Wire size | 0.21…3.3 mm2 (24...12 AWG) solid or stranded copper wire that is rated at 105 °C (221 °F), or greater, 1.2 mm (3/64 in.) insulation max for power connections |
| Operating Temperature | EC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): 0...60 o C (32...140 o F) |
| Non-Operating Temperature | IEC 60068-2-1 (Test Ab, Un-packaged Nonoperating Cold), IEC 60068-2-2 (Test Bc, Un-packaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Un- packaged Nonoperating Thermal Shock): –40...85 o C (– 40...185 o F) |
| Repeater Type | Modular Repeater Adapter |
| Fiber Type | RG6 copper coax |
| Fiber Operating Wavelength | NA |
| Attenuation Levels | NA |
| Input Power | 24 Volts DC |
| Typical Repeater Distance | NA |
| Backplane Output Current | 1.6 A |
| Brand | Allen Bradley |
