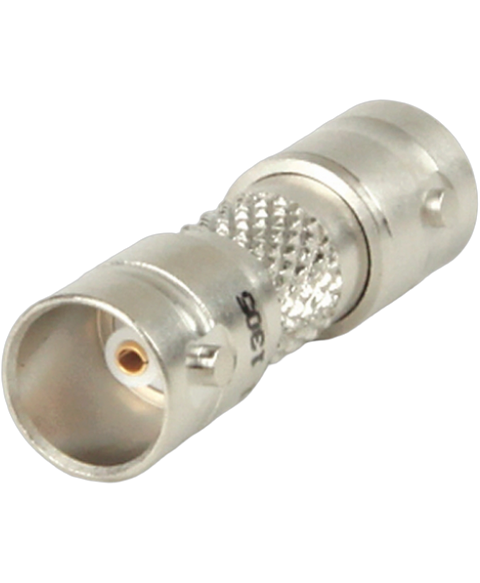

Allen Bradley 1786-BNCJ
The 1786-BNCJ from Allen Bradley functions as a coax bullet connector that allows for seamless signal transmission. This BNC jack-to-jack connector is designed for use with RG-6 coax cable, ensuring reliable connectivity within the ControlNet frequency range.
This Allen Bradley 1786-BNCJ is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication > Controlnet range and is referenced internally as PartLogic SKU PL27202355854.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Coax bullet connector |
| Product Line | 1786 Repeaters |
| Part Number | 1786-BNCJ |
| Weight | 0.19 lbs (0.09 kg) |
| Connector Type | BNC jack-to-jack |
| Impedance | 75 Ω |
| Cable Type | RG-6 coax |
| Function | Inline coupler |
| Connection Style | Female-female |
| Signal Path | Shielded pass-through |
| Installation | Inline use |
| Design | Compact bullet |
| Retention | Lock-fit |
| Dielectric | PTFE |
| Contact Plating | Nickel |
| Frequency Range | ControlNet band |
| Rating | IP20 |
| Brand | Allen Bradley |
