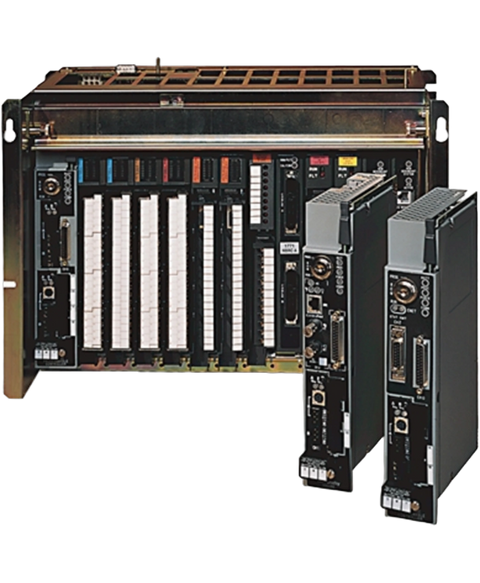

Allen Bradley 1785-L80B
The 1785-L80B is an Allen-Bradley enhanced PLC5 Programmable Logic Controller (PLC). This controller has an embedded user memory of 100,000 Words and comes with multiple communication interfaces such as four (4) DH+,Remote I,O (Adapter or Scanner), one (1) serial port configurable for RS-232, -423, and RS-422A compatibility, and two (2) programming terminals. It can accommodate up to 3072 any mix or 3072 input and 3072 output in complimentary mode.
This Allen Bradley 1785-L80B is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Plc 5 range and is referenced internally as PartLogic SKU PL26988226313.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | PLC 5 |
| Part Number | 1785-L80B |
| UPC | 612598137213 |
| Weight | 3.00 lbs (1.36 kg) |
| Max I/O Chassis Total | 93 |
| Max Total I/O | 3072; any mix or 3072 in + 3072 out |
| Module Type | PLC5 Processor |
| Communication Ports | Four (4) DH+/Remote I/O (Adapter or Scanner), One (1) serial port configurable for RS-232 and 423 and RS-422A compatible and Two (2) programming terminals. |
| Supported Protocols | DF1, ASCII, Data Highway Plus (DH+), Remote I/O (RIO) |
| Controller Memory | up to 64KWords |
| Controller Memory expansion | 1785-ME16 with 16K Words, 1785-ME32 with 32KWords, 1785-ME64 with 64KWords |
| Max. number of I/O racks | 32 |
| Battery | 1770-XYC |
| Controller Redundancy | Supported |
| Power Dissipation | 12 W |
| Backplane Current draw | 2.3 A |
| Processor | PLC-5/80 |
| Max User Memory Words | 100 Kilowords |
| Battery-Backed Static RAM | Yes |
| EEPROM Program Backup Option (using 1785-ME16, -ME32, -ME64, and -M100) | Yes |
| Protected Memory | No |
| Max Analog I/O | 3072 |
| I/O Scan Time Per Rack | 10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, 3 ms at 230.4 mbits/s |
| Max I/O Chassis Extended Local | 0 |
| Max I/O Chassis Universal Remote | 32 Max. Per I/O Link |
| RS-232-C/422-A/423- A Ports | 1 |
| Control Coprocessor Expansion Port | Yes |
| Brand | Allen Bradley |
