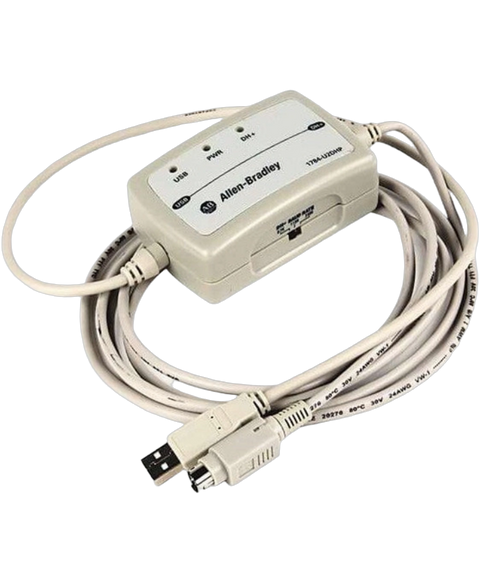

Allen Bradley 1784-U2DHP
The Allen-Bradley 1784-U2DHP is a USB to Data Highway Plus (DH+) cable. This communication peripheral enables any configuration or programming workstation such as a laptop or computer to connect to the Data Highway Plus (DH+) network. This communication device also supports PLC-5 processors (except for Classic PLC-5 processors, such as PLC-5,10, PLC-5,12, PLC-5,15, and PLC-5,25) or SLC 5,04 processors.
This Allen Bradley 1784-U2DHP is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication range and is referenced internally as PartLogic SKU PL26963439039.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | PLC 5 |
| Part Number | 1784-U2DHP |
| UPC | 612598520114 |
| Weight | 0.38 lbs (0.17 kg) |
| Temperature | 0-55 degrees Celsius |
| Power dissipation | 1.575 watts |
| Current | 125 mA |
| Description | Data Highway Plus (DH+) cable |
| Altitude | 2000 meters |
| Enclosure | IP 30 |
| Communication rate | 57.6 Kbps @ 3048 m (10,000 ft) 115.2 Kbps @ 1524 m (5000 ft) 230.4 Kbps @ 762 m (2500 ft) |
| LED indicators | USB Power DH+ network |
| Compatible Processors | PLC-5 processors except (Classic PLC-5 processors, such as PLC-5/10, PLC-5/12, PLC-5/15, and PLC-5/25); SLC 5/04 processors |
| Supply voltage | 5.00V DC 5.25V DC, max |
| Power dissipation, max | 1.575 W |
| Voltage | 5 Volts DC |
| Brand | Allen Bradley |
