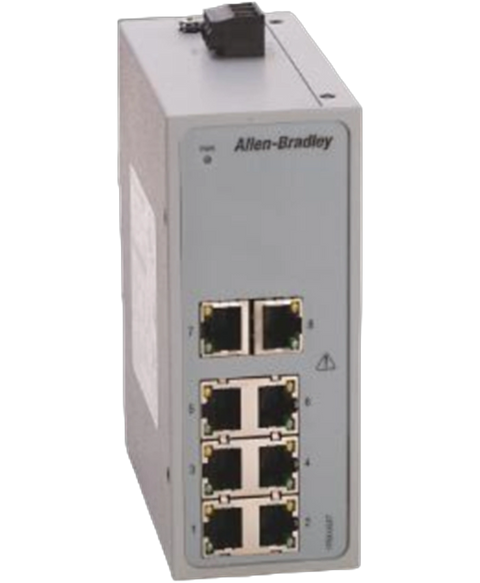

Allen Bradley 1783-US8T
The 1783-US8T Ethernet switch is an unmanaged 8-port Ethernet switch from the Allen-Bradley,Rockwell Automation Stratix 2000 series. All 8 of its ports are fast Ethernet ports. The 1783-US8T unmanaged Ethernet switch does not have any SFP ports. It is made to be mounted on a DIN Rail and it does not have a protective enclosure. The 1783-US8T unmanaged Ethernet switch can operate at 18 to 30 Volts AC at 50 to 60 Hertz frequency and at 12 to 48 Volts DC.
This Allen Bradley 1783-US8T is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet switches > Stratix 2000 range and is referenced internally as PartLogic SKU PL26801462800.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | Stratix 2000 |
| Part Number | 1783-US8T |
| UPC | 884951981386 |
| Weight | 0.75 lbs (0.34 kg) |
| Total Ports | 8 |
| RJ45 Ports | 8 Fast Ethernet |
| SFP Ports | 0 |
| Max Inrush Current | 1.31 A |
| Power Input | 24V (12?48V DC, 18...30V AC, 50/60 Hz), SELV |
| Max Power Consumption | 4.6 W |
| Nom Current | DC 250 mA; AC 500 mA |
| Max Current | DC 510 mA; AC 1100 mA |
| Wire Size: Ground Connection | 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 °F (86 °C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal |
| Wire Size: DC Power Connection | 4.5?5.0 in?lb (0.50?0.56 N?m) |
| Power Terminal Screw Torque | 8.05 in?lb |
| Max Ground Terminal Screw Torque | Open-Style/None |
| Enclosure Type Rating | 4.50 x 3.02 x 1.80 in (114.5 x 76.8 x 45.6 mm) |
| Brand | Allen Bradley |
