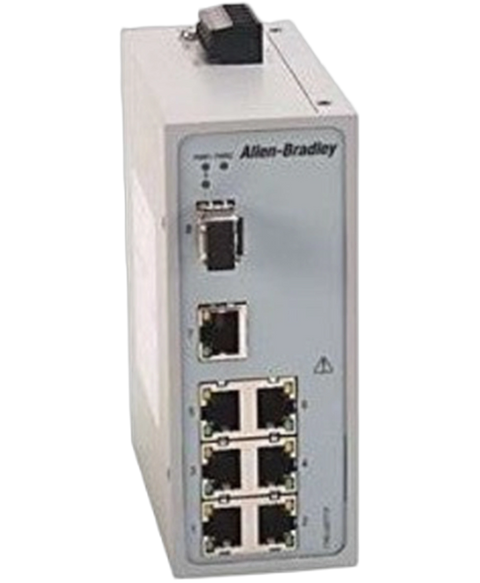

Allen Bradley 1783-US7T1F
The Allen-Bradley 1783-US7T1F is a Stratix 2000 Ethernet unmanaged switch. This ethernet switch has a total of Eight (8) communication ports. It has Seven (7) Fast Ethernet ports supporting 100 Mbps communication rate and One (1) SFP port that is pre-installed with One (1) 1 FE multimode fiber SFP module. It has a nominal input supply requirement of 24V with applicable range of 12-48V DC, 18...30V AC, 50,60 Hz), SELV.
This Allen Bradley 1783-US7T1F is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet switches > Stratix 2000 range and is referenced internally as PartLogic SKU PL26935266354.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | Stratix 2000 |
| Part Number | 1783-US7T1F |
| UPC | 884951981393 |
| Weight | 1.69 lbs (0.77 kg) |
| Enclosure Type Rating | None (open-style) |
| Series | Stratix2000 Unmanaged Ethernet switch |
| No. of Ports | Eight (8) |
| No. of Copper ports | Seven (7) |
| No. of SFP ports | One (1) |
| Pre-installed SFP module | Yes |
| SFP module mode | multi-mode |
| Available Series | Series A / B |
| Power Supply | 24V (12…48V DC, 18...30V AC, 50/60 Hz), SELV |
| Wire size, power connections | 4…0.25 mm2 (12…24 AWG) twisted-pair copper wire suitable for 86 °C (187 °F) above surrounding ambient temperature outside the enclosure |
| Wire size, functional earth | 2.5 mm2 (14 AWG) copper wire suitable for 86 °C (187 °F) above surrounding ambient temperature outside the enclosure, with a suitable ring terminal |
| Total Ports | 8 |
| RJ45 Ports | 7 Fast Ethernet |
| SFP Ports | 1 Fast Ethernet Mulitmode Preinstalled Fiber SFP Module |
| Max Inrush Current | 0.41 A |
| Power Input | 24V (12?48V DC, 18...30V AC, 50/60 Hz), SELV |
| Max Power Consumption | 4.6 W |
| Nom Current | DC 250 mA; AC 500 mA |
| Max Current | DC 510 mA; AC 1100 mA |
| Wire Size: Ground Connection | 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 °F (86 °C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal |
| Wire Size: DC Power Connection | 4.5?5.0 in?lb (0.50?0.56 N?m) |
| Power Terminal Screw Torque | 8.05 in?lb |
| Max Ground Terminal Screw Torque | Open-Style/None |
| Brand | Allen Bradley |
