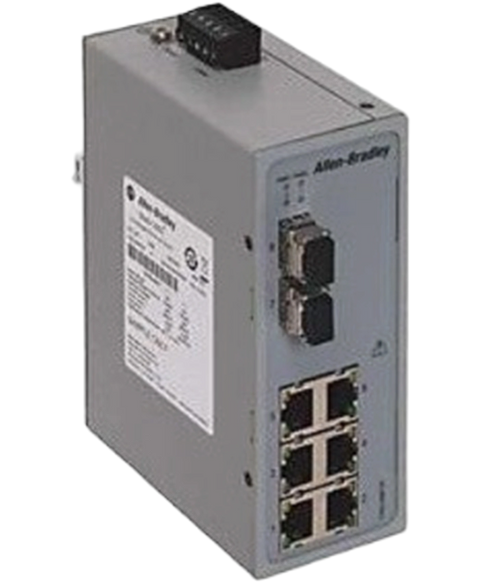

Allen Bradley 1783-US6T2F
The 1783-US6T2F is an industrial Ethernet switch from Allen-Bradley. This product is part of the Stratix 2000 unmanaged ethernet switch catalog featuring Six (6) Fast Ethernet (FE) copper ports supporting 10,100 Mbps transmission speed and Two (2) multi-mode fiber media Fast Ethernet (FE) SFP slots. This Ethernet switch is powered by an external 24 VDC , 24 VAC supply voltage with a power dissipation of 5.927 Watts.
This Allen Bradley 1783-US6T2F is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet switches > Stratix 2000 range and is referenced internally as PartLogic SKU PL26963429131.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Stratix 2000 managed switch |
| Product Line | Stratix 2000 |
| Part Number | 1783-US6T2F |
| UPC | 884951981416 |
| Weight | 1.69 lbs (0.77 kg) |
| Product Family | Stratix Ethernet Switch |
| No. of copper ports | Six (6) copper ports; |
| Transmission speed | 10 / 100 / 1000 mbps |
| No. of fiber ports | Two (2) SFP ports |
| Supply voltage range | 12-48V DC, 18-30V AC, 50/60 Hz |
| Nominal Supply voltage | 24 VAC / VDC |
| Current rating | 442.3 mA |
| Power Dissipation | 5.927 W |
| Total Ports | 8 |
| RJ45 Ports | 6 Fast Ethernet |
| SFP Ports | 2 Fast Ethernet Mulitmode Preinstalled Fiber SFP Module |
| Max Inrush Current | 0.41 A |
| Power Input | 24V (12?48V DC, 18...30V AC, 50/60 Hz), SELV |
| Max Power Consumption | 4.6 W |
| Nom Current | DC 250 mA; AC 500 mA |
| Max Current | DC 510 mA; AC 1100 mA |
| Wire Size: Ground Connection | 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 °F (86 °C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal |
| Wire Size: DC Power Connection | 4.5?5.0 in?lb (0.50?0.56 N?m) |
| Power Terminal Screw Torque | 8.05 in?lb |
| Max Ground Terminal Screw Torque | Open-Style/None |
| Enclosure Type Rating | 4.50 x 3.02 x 1.80 in (114.5 x 76.8 x 45.6 mm) |
| Connector type | RJ45 |
| Wire type | Category 5 (Cat5) based on ISO/IEC 24702; Category 5e (Cat5e) in compliance with TIA 568-B.1 |
| Mounting | DIN Rail |
| Operating shock | 15 g |
| Operating Temperature | -10 °C - +60 °C (-4 °F - +140 °F) |
| Temperature, ambient, max | 60 °C (140 °F) |
| Temperature, surrounding air, max | 60 °C (140 °F) |
| Brand | Allen Bradley |
