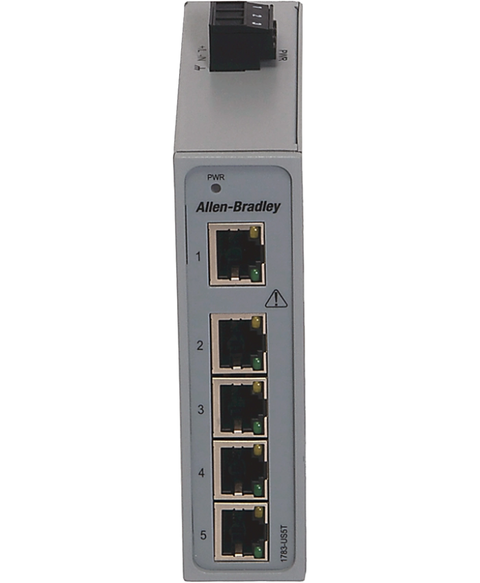

Allen Bradley 1783-US5T
The 1783-US5T is an industrial Ethernet switch from Allen-Bradley. This product is part of the Stratix 2000 unmanaged ethernet switch catalog featuring Five (5) Fast Ethernet copper ports supporting 10,100 Mbps transmission speed. This Ethernet switch is powered by an external 24 VDC , 24 VAC supply voltage with a power consumption of 3.4 Watts.
This Allen Bradley 1783-US5T is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet switches > Stratix 2000 range and is referenced internally as PartLogic SKU PL26801462135.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Stratix 2000 managed switch |
| Product Line | Stratix 2000 |
| Part Number | 1783-US5T |
| UPC | 884951980150 |
| Weight | 0.44 lbs (0.20 kg) |
| Product Family | Stratix Ethernet Switch |
| No. of copper ports | Five (5) copper ports |
| Transmission speed | 10 / 100 mbps |
| No. of fiber ports | None |
| Supply voltage range | 12-48V DC, 18-30V AC, 50/60 Hz |
| Nominal Supply voltage | 24 VAC / VDC |
| Power consumption | 3.4 Watts |
| Inrush Current | 1.85 A |
| Total Ports | 5 |
| RJ45 Ports | 5 Fast Ethernet |
| SFP Ports | 0 |
| Max Inrush Current | 1.85 A |
| Power Input | 24 V (12-48 V DC, 18-30 V AC, 50/60 Hz), SELV |
| Max Power Consumption | 3.4 W |
| Nom Current | DC 180 mA; AC 360 mA |
| Max Current | DC 380 mA; AC 750 mA |
| Wire Size: Ground Connection | 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 degrees F (86 degrees C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal |
| Wire Size: DC Power Connection | 4 x 0.25 mm2 (12 or 24 AWG) Twisted-Pair Copper Wire Suitable for 187 degrees F (86 degrees C) Above Surrounding Ambient Temperature Outside the Enclosure |
| Power Terminal Screw Torque | 4.5x 5.0 in -lb (0.50 x 0.56 N - m) |
| Max Ground Terminal Screw Torque | 8.05 in -lb |
| Enclosure Type Rating | Open-Style/None |
| Connector type | RJ45 |
| Wire type | Category 5 (Cat5) based on ISO/IEC 24702; Category 5e (Cat5e) in compliance with TIA 568-B.1 |
| Mounting | DIN Rail |
| Operating shock | 15 g |
| Operating Temperature | -10 °C - +60 °C (-4 °F - +140 °F) |
| Temperature, ambient, max | 60 °C (140 °F) |
| Temperature, surrounding air, max | 60 °C (140 °F) |
| Brand | Allen Bradley |
