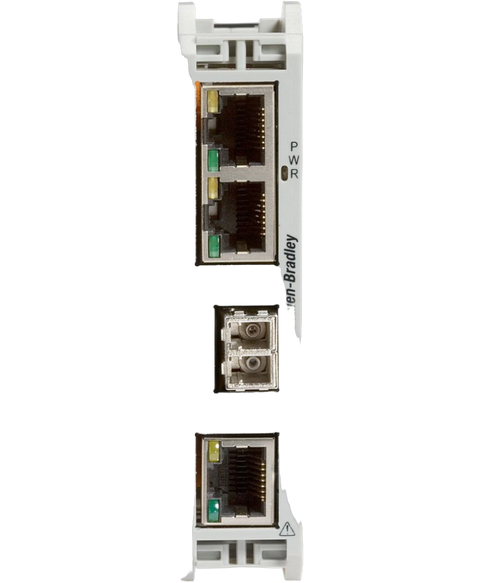

Allen Bradley 1783-US4T1F
The Allen-Bradley 1783-US4T1F Ethernet switch is available from the Allen-Bradley Stratix 2000 series and it is an unmanaged switch. Its broadcast storm threshold ratings in packets per second are 20 pps at 10 Mbps per port and 200 pps at 100 Mbps per port. The 1783-US4T1F unmanaged Ethernet switch comes with 2 DIP switches. One of the DIP switches is for controlling the broadcast storm protection feature and the other DIP switch is reserved. The 1783-US4T1F unmanaged Ethernet switch has 5 ports that include 4 Fast Ethernet ports and 1 Fast Ethernet Multimode SFP port.
This Allen Bradley 1783-US4T1F is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet switches > Stratix 2000 range and is referenced internally as PartLogic SKU PL26948784690.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | Stratix 2000 |
| Part Number | 1783-US4T1F |
| UPC | 884951980167 |
| Weight | 0.56 lbs (0.26 kg) |
| Total Ports | 5 |
| RJ45 Ports | 4 Fast Ethernet |
| SFP Ports | 1 Fast Ethernet Mulitmode Preinstalled Fiber SFP Module |
| Max Inrush Current | 1.69 A |
| Power Input | 24V (12?48V DC, 18...30V AC, 50/60 Hz), SELV |
| Max Power Consumption | 3.4 W |
| Nom Current | DC 180 mA; AC 360 mA |
| Max Current | DC 380 mA; AC 750 mA |
| Wire Size: Ground Connection | 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 °F (86 °C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal |
| Wire Size: DC Power Connection | 4.5?5.0 in?lb (0.50?0.56 N?m) |
| Power Terminal Screw Torque | 8.05 in?lb |
| Max Ground Terminal Screw Torque | Open-Style/None |
| Enclosure Type Rating | 4.51 x 3.02 x 1.17 in (114.5 x 76.8 x 29.6 mm) |
| Brand | Allen Bradley |
