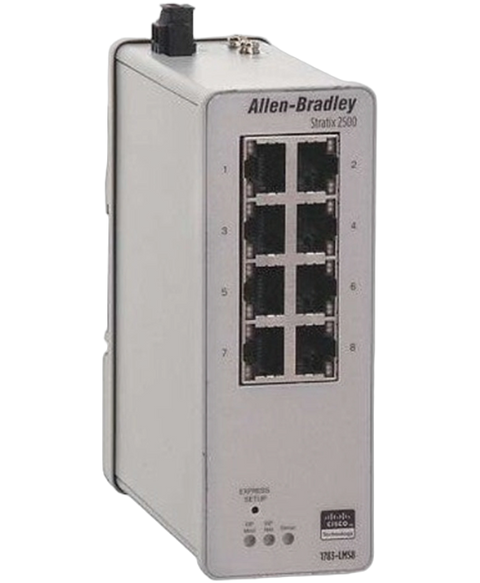

Allen Bradley 1783-LMS8
The Allen-Bradley 1783-LMS8 is a Stratix 2500 Lightly managed Ethernet switch. This communication hardware has Eight (8) Ethernet copper ports that supports transmission speed of 10,100 mbps. It is powered by an external supply voltage of 12-24V DC and input current of 0.4-0.2 A (SELV). It has power consumption and Power Dissipation of 5.3 Watts. This ethernet switch supports DIN rail mounting and configured using the hardware’s Device manager web interface of Studio 5000 Logix designer.
This Allen Bradley 1783-LMS8 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet switches > Stratix 8000 range and is referenced internally as PartLogic SKU PL26944885468.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | Stratix Managed Switches |
| Part Number | 1783-LMS8 |
| UPC | 887172959462 |
| Weight | 1.25 lbs (0.57 kg) |
| Total number of ports per Module | 8 |
| Series | Stratix lightly managed switch |
| Network Interface | EtherNet/IP |
| Module Type | Ethernet switch |
| Environment | IP30 |
| No. of communication ports | Eight (8) copper ports |
| Ethernet Family | Stratix 2500 Switch, Lightly Managed with 8x10/100BaseT |
| Transmission speed | 10/100 mbps |
| Network Media | 1 Male RJ45 to Male RJ45 Patchcord |
| Power supply voltage | 12-24 VDC |
| Ambient operating temperature | -20 to 60 degrees Celsius |
| Input current | 0.4…0.2 A (SELV) |
| Ambient Storage Temperature | -40 to 85 degrees Celsius |
| Power consumption | 5.3 Watts |
| Relative Humidity | 5% to 95% |
| Power Dissipation | 5.3 Watts |
| Installation | DIN Rail |
| Operational Temperature | -20 to 60 oC (-4 to 140 oF) |
| Storage Temperature | -40 to 85 oC (-40 to 185 oF) |
| Brand | Allen Bradley |
