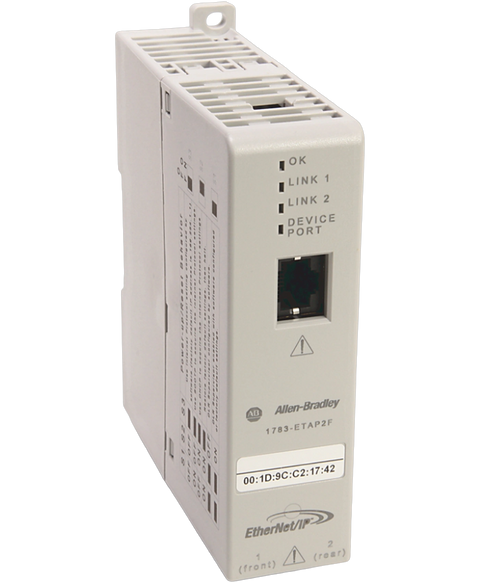

Allen Bradley 1783-ETAP2F
The Allen-Bradley 1783-ETAP2F is an Ethernet I,P Switch used for industrial Ethernet I,P communication. This module has One (1) 10,100 Mbps, auto-negotiating copper port and Two (2) Fiber Optic interface that supports 100 Mbps in full duplex operation. This device support horizontal or vertical installation orientation using a standard DIN rail.
This Allen Bradley 1783-ETAP2F is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Ethernet taps range and is referenced internally as PartLogic SKU PL26941168185.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product type | Ethernet tap |
| Product Line | Stratix 5700 |
| Part Number | 1783-ETAP2F |
| UPC | 612598594436 |
| Weight | 0.44 lbs (0.20 kg) |
| Status indicators | OK / Link1 / Link 2 indicators |
| Power Supply Input | 20.4…27.6V DC |
| Installation Orientation | Horizontal / Vertical |
| Installation | DIN Rail / Panel Mount |
| Supported Topologies | Linear, Star |
| Transmission speed | 10/100 Mbps |
| Fiber Optic Connector | LC Connector |
| No. Of Fiber Ports | Two (2) |
| No. of Copper Ports | One (1) |
| Total No. of Ports | Three (3) |
| Module Type | Ethernet Tap Module |
| Fiber ports | 2 |
| RJ45 port | 1 |
| Tap type | Dual port fiber |
| Input voltage | 24 Volts DC |
| Peak current consumption | 260 milliamps |
| Peak power consumption | 6.24 Watts |
| Operating temperature | -25 to 60 degrees Celsius |
| Brand | Allen Bradley |
