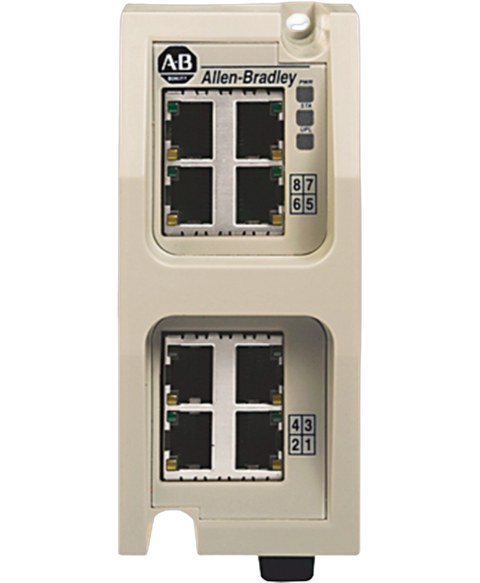

Allen Bradley 1783-EMS08T
The Allen-Bradley 1783-EMS08T is an Allen-Bradley Stratix 6000 industrial managed Ethernet switch. This Ethernet switch is ideally used in implementing Ethernet I,P networks. It has Eight (8) 10,100 full and Half-duplex ports. It supports TCP,IP, EtherNet,IP, Telnet, Http, DHCP, BOOTP, FTP, IGMP, SMTP.
This Allen Bradley 1783-EMS08T is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet switches > Stratix 8000 range and is referenced internally as PartLogic SKU PL26948378864.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product type | Managed Ethernet switch |
| Product Line | Stratix 5700 |
| Part Number | 1783-EMS08T |
| UPC | 612598718498 |
| Weight | 0.63 lbs (0.28 kg) |
| Functional Ground connection | 3.3 mm2 (12 AWG) solid or stranded copper wire rated at 75 °C (167 °F) or greater |
| Wire size, DC power connection | 0.33…3.3 mm2 (22...12 AWG) solid or stranded copper wire rated at 75 °C (167 °F) or greater, 1.2 mm (3/64 in.) insulation max |
| Wire size, Ethernet connection | RJ45 connector according to IEC 60603-7, 2 or 4 pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702 |
| Power Dissipation | 5.8 W |
| Power Requirements | 250 mA @ 24V DC (12…48V DC) Class 2/SELV Power Dissipation 30 W |
| Supported options | 1 Gigabyte fiber optic transceiver |
| Status Indicators | 16 port indicators, 3 status indicators |
| Ethernet I/P Features | MAC ID management, bandwidth alarming, port control, link status, scaled bandwidth information, connections active |
| Supported protocols | TCP/IP, EtherNet/IP, Telnet, Http, DHCP, BOOTP, FTP, IGMP, SMTP |
| Transmission speed | 10/100 Mbps |
| No. of Ports | Eight (8) |
| Copper ports | 8 |
| Fiber port | 1 |
| Input voltage | 12 to 48 Volts DC |
| Peak power dissipation | 5.8 Watts |
| Peak thermal dissipation | 24.6 BTU / hour |
| Supported SFP modules | 1783-SFP1GSX, 1783 SFP1GLX |
| Operating temperature | 32 to 140 degrees Fahrenheit |
| Brand | Allen Bradley |
