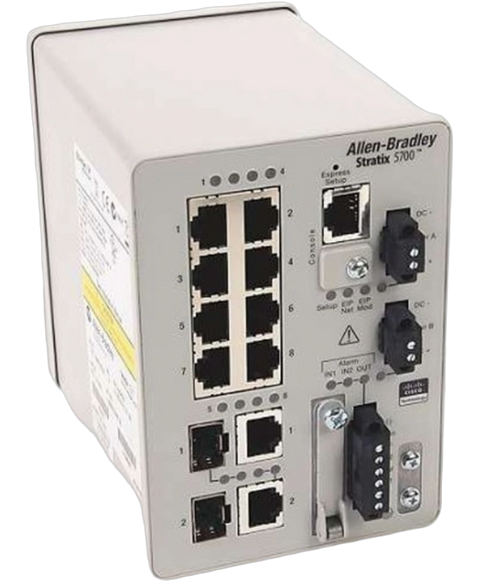

Allen Bradley 1783-BMS10CGP
The Allen-Bradley 1783-BMS10CGP is an Allen-Bradley Stratix 5700 industrial managed Ethernet switch. This Ethernet switch is ideally used in implementing Ethernet I,P networks. It has Ten (10) Ports, composed of Eight (8) Fast Ethernet Copper ports and Two (2) Gigabit Ethernet combo ports. This module is powered by an external supply of 24V DC.
This Allen Bradley 1783-BMS10CGP is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet switches > Stratix 2000 range and is referenced internally as PartLogic SKU PL26931886554.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product type | Managed Ethernet switch |
| Product Line | Stratix 5700 |
| Part Number | 1783-BMS10CGP |
| UPC | 886739973514 |
| Weight | 3.50 lbs (1.59 kg) |
| Alarm Relay | 1 A @ 30V DC or 0.5 A @ 48V DC |
| Wire size, ground connection | 4.0 mm2 (12 AWG) min, stranded copper wire |
| Wire size, alarm connection | 0.5…0.8 mm2 (20…18 AWG) solid or stranded, UL/CSA- rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire, 6.3 mm (0.25 in.) ±0.5 mm (0.02 in.) strip length |
| Wire size, DC power connection | 0.5…0.8 mm2 (20…18 AWG) solid or stranded copper wire rated at 75 °C (167 °F) or greater, 1.2 mm (3/64 in.) insulation max, 6.3 mm (0.25 in.) ±0.5 mm (0.02 in.) strip length |
| Wire size, Ethernet connection | RJ45 connector according to IEC 60603-7, 2- or 4-pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702 |
| Power Dissipation | 20 W |
| Power Supply | 12…48V DC |
| No. of Gigabit Ports | Two (2) |
| No. of Fast Ethernet Ports | Eight (8) |
| No. of Ports | Ten (10); |
| Ports | 10 |
| RJ45 ports | 8 |
| Combo ports | 2 |
| DLR | Yes |
| CIP synch | Yes |
| Input voltage | 12 to 48 Volts DC |
| Brand | Allen Bradley |
