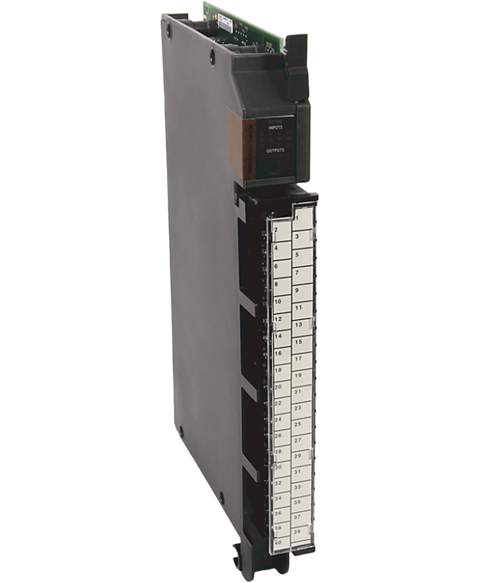

Allen Bradley 1771-VHSC
The Allen-Bradley 1771-VHSC is an Allen-Bradley Very High-speed counter module. This module is capable of performing high-speed counting for industrial applications, typically used for totalizing, counter and encoder integration applications. This module has 4 input channels configurable for encoder mode, counter mode, period,rate mode and continuous,rate mode and Eight (8) 5-24VDC current sourcing outputs.
This Allen Bradley 1771-VHSC is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Plc 5 range and is referenced internally as PartLogic SKU PL26931620326.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | PLC 5 |
| Part Number | 1771-VHSC |
| GTIN | 10612598114907 |
| Weight | 1.00 lbs (0.45 kg) |
| Typical DC Signal Delay (Off) | 30 (+/- 7) milliseconds |
| Typical AC Signal Delay (Off) | 29 (+/- 8) milliseconds |
| Required External Power | None |
| I/O Connection Hardware | 1771-RTP1 |
| Wiring Arm | 1771-WN |
| Backplane Current | 0.65 Amps |
| Module Update Period | 100 Microseconds |
| Slots | 1 Slot |
| Outputs | 8 Digital Outputs |
| Max Input Frequency | 1 Megahertz (in counter mode) |
| Inputs | 12 Digital Inputs (3 Per Counter) |
| Module Type | High-Speed Counter Module |
| Brand | Allen Bradley |
