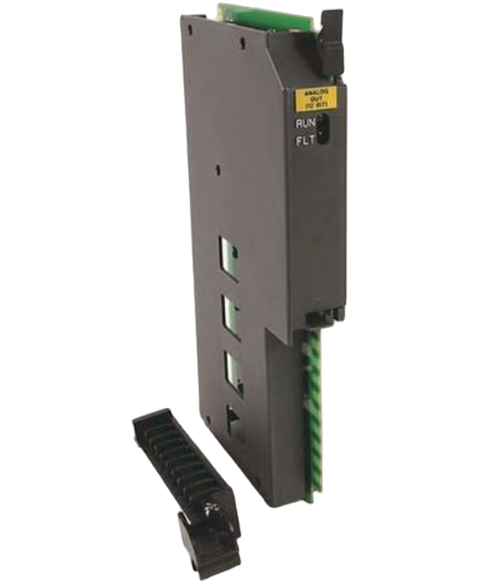

Allen Bradley 1771-OFE2
Description: The Allen-Bradley 1771-OFE2 is an analog output module with individually isolated channels. This module is part of the 1771 product bulletin that features Four (4) output channels that delivers 4-20 mA output current. It occupies a single slot of any 1771 I,O chassis. This module has digital resolution of 12-bit binary.
This Allen Bradley 1771-OFE2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Plc 5 range and is referenced internally as PartLogic SKU PL26989511806.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | PLC 5 |
| Part Number | 1771-OFE2 |
| UPC | 612598003075 |
| Weight | 1.25 lbs (0.57 kg) |
| Power Dissipation | 7.9 Watts |
| Module Type | Individually isolated analog output module |
| Series | 1771 Product Bulletin |
| No. of outputs | Four (4) outputs |
| Output Current | 4-20 mA |
| Module location | 1771 I/O chassis |
| Module width | Single slot |
| Digital resolution | 12-bit binary |
| Backplane power | 1.50 A |
| Thermal Dissipation | 26.9 BTU/hr |
| Keying | Between 10 and 12; Between 26 and 28 |
| Field Wiring Arm | Cat. No. 1771-WC |
| Wiring Arm Screw Torque | 7-9 inch-pounds |
| Number of I/O | 4 Isolated (1000 Volt) Differential |
| Data Format | Natural Binary or BDC Scaling to +/- 9999 |
| Voltage Range | N/A |
| Current Range | 4-20 Miliamperes |
| Backplane Current | 1.5 Miliamperes |
| External Power | None |
| Wiring Arm | 1771-WH |
| Coating | Conformal Coat |
| Typical AC Signal Delay (Off) | 45 (+/- 15) ms |
| Typical DC Signal Delay (Off) | 50 ms |
| Mounting | Rack Mountable |
| Indicators | 2 LED |
| Brand | Allen Bradley |
