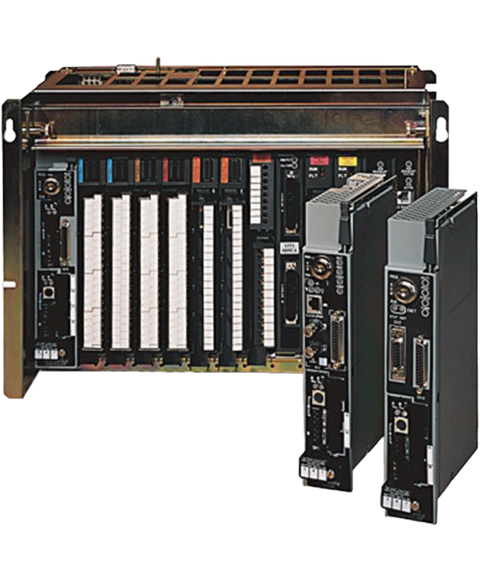

Allen Bradley 1771-OAD
The Allen-Bradley 1771-OAD is a PLC5 discrete output module that is compatible for installation with any 1771 I,O chassis except 1771-A1, 1771-A2, 1771-A4. This module has Sixteen (16) programmable output channels compatible for voltage category of 12-120VAC.
This Allen Bradley 1771-OAD is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Plc 5 range and is referenced internally as PartLogic SKU PL26805636051.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | PLC 5 |
| Part Number | 1771-OAD |
| GTIN | 10662468102114 |
| Weight | 1.31 lbs (0.60 kg) |
| Module Type | Digital AC Output Module |
| Number of Outputs | 16 Outputs |
| Voltage Category | 120 Volts AC |
| AC Operating Voltage | 10 to 138 Volts AC |
| Max Continuous Current Per Output | 2 Amps |
| Max Current Per Module | 8 Amps |
| Backplane Current | 1.5 Amps |
| Data Format | BDC or Natural Binary |
| Typical AC Signal Delay (Off) | 45 (+/- 15) milliseconds |
| Signal Delay (max.) Off to On | Zero crossing 8.3ms @ 60Hz, 10.0ms @ 50Hz |
| Typical DC Signal Delay (Off) | 50 milliseconds |
| Wiring Arm | 1771-WH |
| Mounting | Rack Mountable |
| UPC | 10662468102114 |
| Brand | Allen Bradley |
