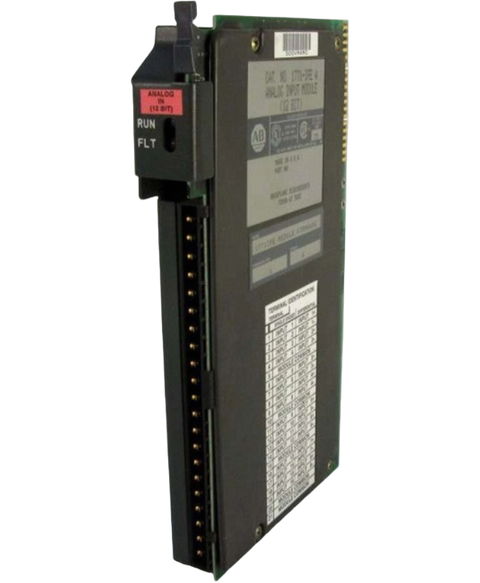

Allen Bradley 1771-IFE
The Allen-Bradley 1771-IFE is a PLC5 analog input module that is compatible for installation with any 1771 I,O chassis. This module has Sixteen (16) Single-eneded channels or Eight (8) Differential input channels. Each channel are configurable for input Voltage and Current signal ranges of 1 to 5V dc, 0 to 5V dc, -5 to +5V, -10 to +10V dc, 0 to 10V dc, 4 to 20mA, 0 to 20mA, and 20 to +20mA. This module is used with Block transfer instructions such as BTW and BTR for sending and receiving analog data and instructions.
This Allen Bradley 1771-IFE is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Plc 5 range and is referenced internally as PartLogic SKU PL26805570846.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | PLC 5 |
| Part Number | 1771-IFE |
| GTIN | 10612598002211 |
| Weight | 1.00 lbs (0.45 kg) |
| I/O | 8 Differential or 16 Single-Ended |
| Module Type | Analog Input |
| Chassis Compatibility | Any chassis |
| Channel Update/Resolution | 18 milliseconds/8; 36 milliseconds/16 |
| Data Format | Natural Binary or BDC Scaling to +/- 9999 |
| Resolution | 12-bit binary; 12 bits plus sign on bipolar ranges |
| Accuracy | 0.1% of full scale range @ 25oC |
| External Power Required | No |
| Internal Scan Rate | 12.5 ms for 8 differential inputs (no digital filtering) -add 2.12ms for filtering 25 ms for 16 single-ended input (no digital filtering) -add 4.24 for filtering |
| Voltage Range | -10 to 10 Volts DC |
| Typical DC Signal Delay (On) | 10 milliseconds |
| Current Range | -20 to 20 mA |
| Wiring Arm | 1771-WG |
| Typical AC Signal Delay (Off) | 24 milliseconds |
| Backplane Current | 750 miliAmperes External |
| Typical DC Signal Delay (Off) | 20 milliseconds |
| Mounting | Rack Mountable |
| Slot Width | 1 Slot |
| UPC | 10612598002211 |
| Brand | Allen Bradley |
