Allen Bradley 1769-SM2

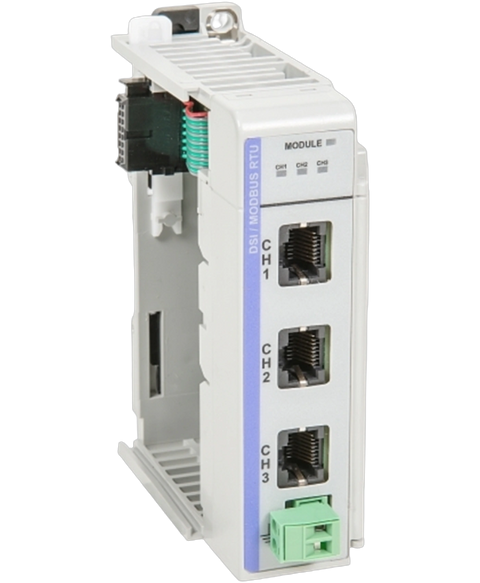

The Allen-Bradley 1769-SM2 is a Compact I,O module. This module is used to enable a CompactLogix or MicroLogix 1500 controller assembly to communicate over Drive Serial Interface (DSI) or implement MODBUS communication. It can be used for communicating with PowerFlex 4 class drive as well as PowerFlex 7 class drives via the 20-COMM-H RS485. The 1769-SM2 support Single and Multi-drive operating mode.
This Allen Bradley 1769-SM2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Compactlogix range and is referenced internally as PartLogic SKU PL26890699720.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix |
| Part Number | 1769-SM2 |
| UPC | 820919134630 |
| Weight | 0.38 lbs (0.17 kg) |
| Product Description | Compact I/O DSI / MOODBUS communication module |
| Module Width | Single Slot |
| Compatible controllers | CompactLogix; MicroLogix 1500 |
| Compatible PowerFlex drive | PowerFlex 4 and PowerFlex 7 class drives |
| Supported protocols | Drive Serial Interface (DSI); MODBUS RTU |
| DSI Data Transfer speed | 19200 bps |
| MODBUS Transfer speed | 300, 600, 1200, 2400, 4800, 9600, 19200, or 38400 bps |
| Current draw | 350 mA @ 5Vdc and; 0 mA @ 24Vdc supplied by the Compact I/O Power Supply |
| Mounting | DIN Rail; Panel Mounting |
| Operating Temperature | -10…50 °C (14…122 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Vibration | 5g, 10 to 500 Hz |
| Operating Shock | 30g, 11 ms |
| Module Type | DSI/Modbus Module |
| Series | A and B |
| Power Supply Distance Rating | 8 Modules |
| Wire Type | Copper-90? |
| Solid Wire Size | 22?14 AWG |
| Stranded Wire Size | 22?16 AWG |
| Brand | Allen Bradley |
