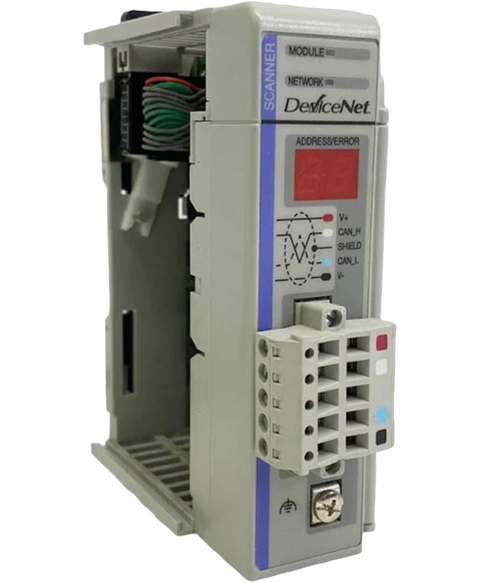

Allen Bradley 1769-SDN
The Allen-Bradley 1769-SDN is a DeviceNet Scanner communication module compatible for 1769 CompactLogix or MicroLogix 1500 system. It communicates to 1769-ADN DeviceNet adapters and other DeviceNet enabled devices through the integrated DeviceNet communication port of the module with communication rates of 125k bit,s, 250k bit,s, and 500k bit,s. This module supports DIN rail or panel mounting.
This Allen Bradley 1769-SDN is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication > Compactlogix range and is referenced internally as PartLogic SKU PL26801466582.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Communication Module |
| Product Line | CompactLogix |
| Part Number | 1769-SDN |
| UPC | 612598287246 |
| Weight | 0.38 lbs (0.17 kg) |
| Module Type | DeviceNet Communication Module |
| Description | DeviceNet Scanner |
| Communication Port | One (1) DeviceNet |
| Series | A and B |
| Data Transfer speed | 125k bit/s 250k bit/s 500k bit/s |
| No. of nodes | 63 |
| Wire Type | Copper at 90 degrees Celsius |
| Indicators | Module Status: red/grn Network status - red/grn I/O status- red/grn Diagnostic status- red/grn |
| Power Supply Distance Rating | Series A: 4; Series B: 5 |
| Solid Wire Size | 22 to 14 AWG |
| Mounting | DIN Rail; Panel |
| Stranded Wire Size | 22 to 16 AWG |
| Heat Dissipation | 440 mA at 5 Volts DC/2.2 Watts |
| Agency Certification | UL; CE; DeviceNet Foundation |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| UNSPSC | 32151705 |
| Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
| Backplane Current | Series A: 450mA at 5V dc (2.25W) Series B: 500mA at 5V dc (2. 5W) |
| Humidity | 5% to 95% non-condensing |
| Brand | Allen Bradley |
