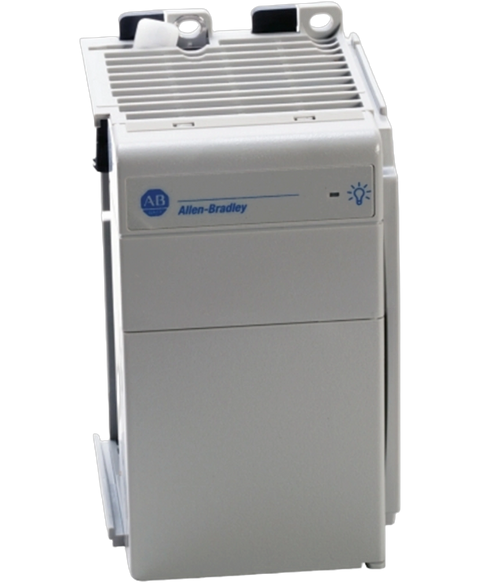

Allen Bradley 1769-PB4
The Allen-Bradley 1769-PB4 is a Compact I,O power supply. This power supply module is externally powered by an input Voltage range of 19.2.-31.2VDC with nominal input voltage of 24VDC. It has capacity of 4A at 5VDC and 2A at 24VDC. 8 I,O modules can be connected on either side of the power supply for a maximum of 16 modules.
This Allen Bradley 1769-PB4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supply > Compactlogix range and is referenced internally as PartLogic SKU PL26801460657.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix |
| Part Number | 1769-PB4 |
| UPC | 612598276899 |
| Weight | 0.94 lbs (0.43 kg) |
| Module Type | Power Supply |
| Nom Input Voltage | 24VDC |
| Input Voltage Range | 19.2-31.2VDC |
| Power consumption | 100 VA @ 24V DC |
| Power dissipation | 14.5 W @ 60° C (140° F) |
| Current capacity @ 5V | 4.0 A |
| Current capacity @ 24V | 2.0 A |
| Inrush current, max | 30 A @ 31.2V DC |
| Isolation Voltage | 75V (continuous), reinforced insulation type (IEC Class 1 grounding required) Routine tested at 1697V DC for 1 s, DC power input to system |
| Fuse Type | Wickmann 19193-6.3A Littelfuse 021706.3MXP |
| Module location | DIN rail or panel mount |
| Input Power | 24 Volts DC |
| Enclosure | Open |
| Mounting | Panel or DIN Rail |
| Power Supply Distance Rating | 8 Modules |
| Wire Type | Copper-90 |
| Solid Wire Size | 22 to 14 AWG |
| Operating shock | 20G |
| Stranded Wire Size | 22 to 16 AWG |
| Brand | Allen Bradley |
