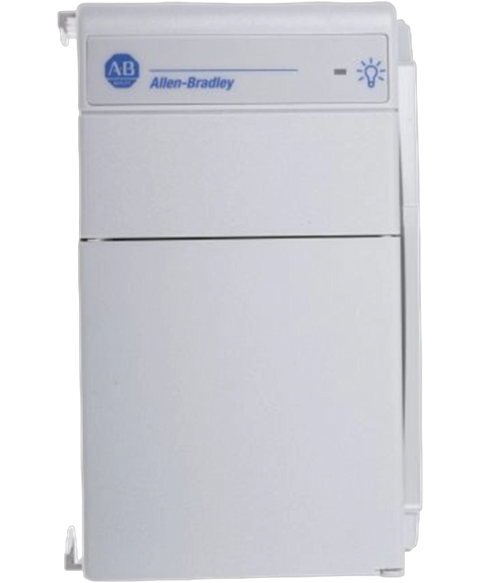

Allen Bradley 1769-PA2
The Allen-Bradley 1769-PA2 is a 1769 CompactLogix Power Supply. This Power Supply has an input voltage range of 85 - 265VAC, operating at a nominal input of 120V,220V AC. It has a Current capacity of 2.0A at 5.0V and 0.8A at 24VDC.
This Allen Bradley 1769-PA2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supply > Compactlogix range and is referenced internally as PartLogic SKU PL26801368815.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | I/O Power Supply |
| Product Line | CompactLogix |
| Part Number | 1769-PA2 |
| UPC | 662468992954 |
| Weight | 0.88 lbs (0.40 kg) |
| Module Type | AC Power Supply Module |
| Input Power | 120 Volts AC |
| Input Voltage range | 85…265V AC |
| Input frequency range | 47…63 Hz |
| Power supply distance rating | 8; 8 I/O modules can be connected on either side of the power supply for a maximum of 16 module. |
| Power consumption | 100VA @ 120V AC; 130VA @ 240V AC |
| Power dissipation | 8 W @ 60 °C (140 °F) |
| Enclosure Type Rating | None (Open Style) |
| Current capacity @ 5V DC | 2.0 A |
| Wire Type | Copper-90 degrees |
| Current capacity @ 24V DC | 0.8 A |
| Solid Wire Size | 22 to 14 AWG |
| Inrush current, max | 25 A @ 132V AC |
| Stranded Wire Size | 22 to 16 AWG |
| Fuse type | Littelfuse 02153.15MXP; Wickmann 19195-3.15A |
| Wire size | 14 AWG (2.5 mm2 ) solid copper wire rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation max |
| Certifications | c-UL-us; CE; C-Tick |
| Brand | Allen Bradley |
