Allen Bradley 1769-OF8V

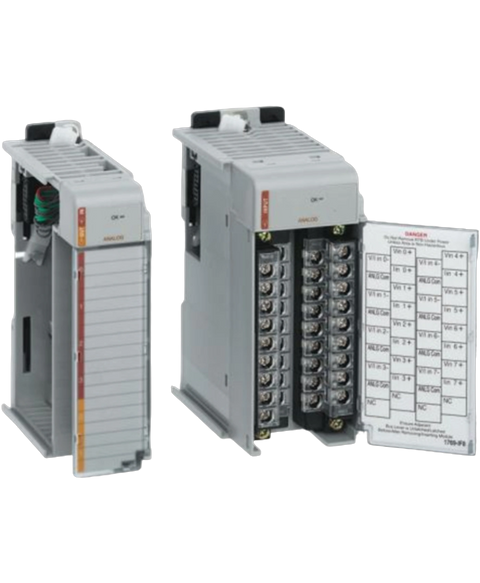

The Allen-Bradley 1769-OF8V is Programmable Controller module that is part of the compact I,O series. This module is an analog output module that features Eight (8) channels configurable for ± 10V dc, 0 to 10V dc, 0 to 5V dc and 1 to 5V dc Voltage output. It is compatible for use with CompactLogix and MicroLogix controllers.
This Allen Bradley 1769-OF8V is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Compactlogix range and is referenced internally as PartLogic SKU PL26947010287.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Analog Output Module |
| Product Line | CompactLogix |
| Part Number | 1769-OF8V |
| UPC | 662468861380 |
| Weight | 0.44 lbs (0.20 kg) |
| Product Family | Compact I/O modules |
| No. of Outputs | Eight (8) Single Ended |
| Compatible Controllers | MicroLogix 1500; CompactLogix |
| Power Supply Distance rating | 8 |
| Analog Ranges | ± 10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc |
| Full scale analog ranges | ± 10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc |
| Analog data format | Raw / Proportional data, Engineering unit, Scaled for PID and Percent full range. |
| Bus Current Draw (max.) | 5V DC, 145 mA 24V DC, 135 mA |
| Conversion rate | 5 ms |
| Digital resolution | 16 bits plus sign (bipolar) ±10V DC: 15.89 bits, 330 ?V/bit 0…10V DC: 14.89 bits, 330 ?V/bit 0…5V DC: 13.89 bits, 330 ?V/bit 1…5V DC: 13.57 bits, 330 ?V/bit |
| Calibration | None required (guaranteed by hardware design) |
| Overall accuracy | ±0.5% full scale @ 25 °C (77 °F) |
| Slot width | 1 |
| Module Type | Analog Voltage Output Module |
| Input Type | Output Voltage |
| Communication Cable | 8 Point |
| Series | A and B |
| Outputs | 8 Single-Ended |
| Output Range | 0-10 Volts |
| Enclosure | Open |
| Wire Type | Copper-90? |
| Solid Wire Size | 22?14 AWG |
| Stranded Wire Size | 22?16 AWG |
| Brand | Allen Bradley |
