Allen Bradley 1769-OF4

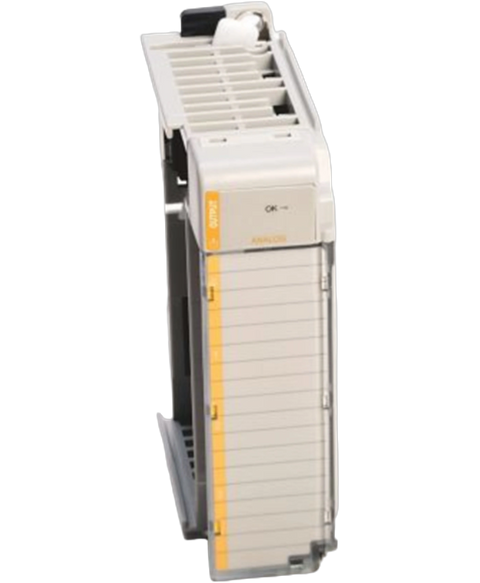

The Allen-Bradley 1769-OF4 is Compact I,O module. This module is an analog output module with Four (4) single-ended channels configurable for as Four (4) Voltage and Current channels. Applicable output voltage and current range are ±10V, 0-10V, 0-5V, 1-5V and 0-20 mA or 4-20 mA. Output signals may be used to drive modulating actuators and devices. This module is compatible for use with MicroLogix 1500 and CompactLogix controllers.
This Allen Bradley 1769-OF4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Compactlogix range and is referenced internally as PartLogic SKU PL26930351047.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix |
| Part Number | 1769-OF4 |
| UPC | 612598840786 |
| Weight | 1.00 lbs (0.45 kg) |
| Product Family | Compact I/O |
| Module Type | Analog Output Module |
| Input Type | Analog Output |
| No. of Outputs | Four (4) Single Ended |
| Compatible Controllers | MicroLogix 1500; CompactLogix |
| Communication Cable | 4 Point |
| Power Supply Distance rating | 8 |
| Analog Ranges | Voltage: ±10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc Current: 0 to 20 mA, 4 to 20 mA |
| Series | A and B |
| Full scale analog ranges | Voltage: ±10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc Current: 0 - 21 mA, 3.2 - 21 mA |
| Replacement Terminal Block Part Number | 1769-RTBN18 |
| Analog data format | 15 bits plus sign unipolar and bipolar |
| Replacement Door Part Number | 1769-RD |
| Conversion rate | 2.5 ms |
| Wire Type | Copper |
| Current draw @ 5.1V | 120 mA |
| Solid Wire Size | 22 to 14 AWG |
| Current draw @ 24V | 170 mA |
| Stranded Wire Size | 22 to 16 AWG |
| Heat Dissipation | 2.86 W |
| Calibration | None required (guaranteed by hardware design) |
| Non-linearity (in percent full scale) | ±0.05% |
| Slot width | 1 |
| Brand | Allen Bradley |
