Allen Bradley 1769-OF2

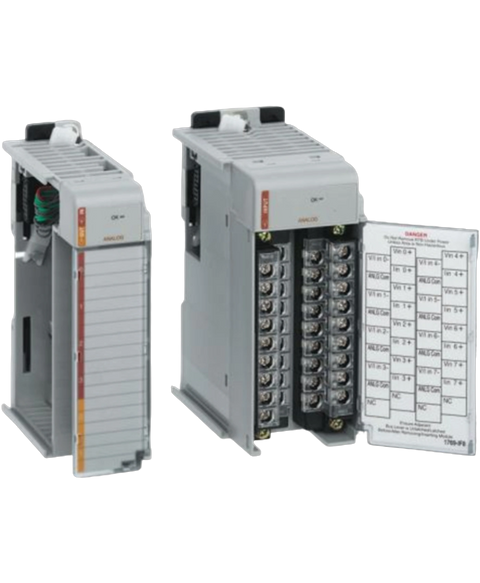

The Allen-Bradley 1769-OF2 is a Compact I,O analog output module with Two (2) single-ended output channels. This module is designed to deliver analog voltage signals such as ± 10VDC, 0 to 10VDC, 0 to 5VDC, 1 to 5VDC and analog Current signals such as 0-20 mA and 4-20 mA. This module is compatible for use with MicroLogix 1500 and CompactLogix controllers.
This Allen Bradley 1769-OF2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Compactlogix range and is referenced internally as PartLogic SKU PL26805532704.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix |
| Part Number | 1769-OF2 |
| UPC | 662468992947 |
| Weight | 0.63 lbs (0.28 kg) |
| No. of Outputs | Two (2) Single Ended |
| Compatible Controllers | MicroLogix 1500; CompactLogix |
| Conversion Rate | 2.5 ms |
| Power Supply Distance rating | 8 |
| Analog Ranges | Voltage: ±10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc Current: 0 to 20 mA, 4 to 20 mA |
| Full scale analog ranges | Voltage: ±10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc Current: 0 - 21 mA, 3.2 - 21 mA |
| Resolution | 14 bits (unipolar); 14 bits plus sign (bipolar) |
| Step response | 2.9 ms |
| Current draw @ 5.1V | 120 mA |
| Heat Dissipation | 2. 36 W |
| Calibration | None required (guaranteed by hardware design) |
| Slot width | 1 |
| Module Type | Analog Output Module |
| Input Type | Analog |
| Communication Cable | 2 Point |
| Series | A and B |
| Wire Size (Solid) | 22 to 14 AWG |
| Replacement Terminal Block | 1769-RTBN18 |
| Replacement Door | 1769-RD |
| Mounting | Panel Mount or DIN Rail |
| UNSPSC | 32151705 |
| Brand | Allen Bradley |
