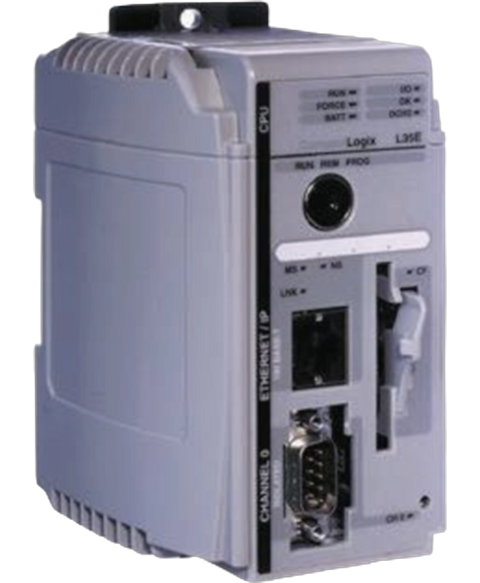

Allen Bradley 1769-L35E
The Allen-Bradley 1769-L35E is a 1769 CompactLogix controller. This controller has embedded 1.5 MB memory, One (1) Ethernet and One (1) RS232 communication port. It supports up to Thirty (30) Compact I,O modules and supports up to Three (3) expansion banks.
This Allen Bradley 1769-L35E is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Compactlogix range and is referenced internally as PartLogic SKU PL26805544164.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | CompactLogix Controller |
| Product Line | CompactLogix |
| Part Number | 1769-L35E |
| UPC | 612598302130 |
| Weight | 0.75 lbs (0.34 kg) |
| Communication | Ethernet and RS-232 Serial Port |
| Module Type | Processor Module |
| User Memory | 1.5MB |
| Memory | 1.5 MB |
| Non-Volatile memory | 1784-CF128 |
| Communication ports | 1 RS232; 1 Ethernet |
| Series | A and B |
| Supported Protocols | DH485; DF1; ASCII; EtherNet |
| Wire Type | Copper - 90 degrees Celsius |
| Maximum number of I/O modules supported | 30 Modules |
| Wire Size (Solid) | 22 to 14 AWG |
| Maximum number of I/O banks supported | 3 banks |
| Wire Size (Stranded) | 22 to 16 AWG |
| Power supply distance rating | 4 |
| Battery | 1769-BA |
| Programming cable | 1747-CP3 / 1756-CP3 |
| Frequency | 10 to 500 Hertz |
| Mounting Torque | 1.1 to 1.8 N-m |
| Ethernet Communication Cable | Ethernet cable Cat5 / Cat6 |
| Cable | 1747-CP3/1756-CP3 |
| Vibration | Operating: 10 to 500 Hz, 5G, 0.030 in. peak-to-peak |
| Operating Temperature | 0° to +60°C (+32° to +140°F) |
| Mounting | DIN Rail; Panel Mounting |
| Brand | Allen Bradley |
