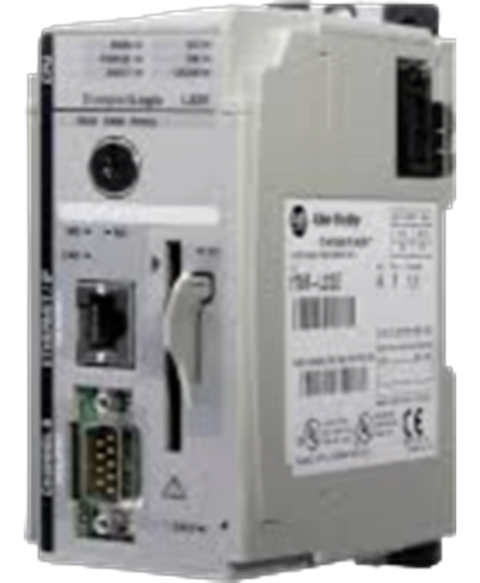

Allen Bradley 1769-L32E
The Allen-Bradley 1769-L32E is a 1769 CompactLogix controller from the 5370 CompactLogix family. This controller has embedded 750Kbytes memory, One (1) Ethernet and One (1) RS232 communication port. It supports up to Sixteen (16) Compact I,O modules and supports up to Three (3) expansion banks.
This Allen Bradley 1769-L32E is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Compactlogix range and is referenced internally as PartLogic SKU PL26931617827.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Automation Controller |
| Product Line | CompactLogix |
| Part Number | 1769-L32E |
| UPC | 612598313938 |
| Weight | 0.75 lbs (0.34 kg) |
| Module Type | Processor Module |
| Communication | Ethernet/IP |
| Communication ports | 1 RS232; 1 Ethernet |
| Supported Protocols | DH485; DF1; ASCII; EtherNet |
| Memory | 750 KB |
| Maximum number of I/O modules supported | 16 Modules |
| Maximum number of I/O banks supported | 3 banks |
| Power supply distance rating | 4 |
| Series | A and B |
| Battery | 1747-BA |
| Programming cable | 1747-CP3 / 1756-CP3 |
| Wire Type | Copper-90 degrees Celsius |
| Wire Size (Solid) | 22 to 14 AWG |
| Vibration | Operating: 10 to 500 Hz, 5G, 0.030 in. peak-to-peak |
| Modules Supported | 16 I/O Modules |
| Operating Temperature | 0° to +60°C (+32° to +140°F) |
| Wire Size (Stranded) | 22 to 16 AWG |
| Programming Language | Relay ladder, Structured Text, Function block, SFC |
| Mounting | DIN Rail; Panel Mounting |
| UNSPSC | 32151705 |
| Certifications | c-UL-us; CE; C-Tick; CI |
| Brand | Allen Bradley |
