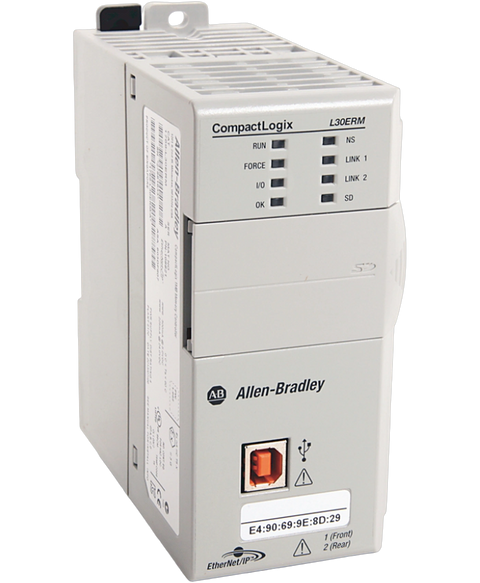

Allen Bradley 1769-L30ERM
The Allen-Bradley 1769-L30ERM is a CompactLogix packaged controller from the 5370 CompactLogix family. This controlled has embedded 1MB memory, Two (2) Ethernet communication ports, and One (1) USB port. It supports up to Eight (8) Compact I,O modules and supports Three (3) expansion banks. This controller supports up to Four (4) motion axes.
This Allen Bradley 1769-L30ERM is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Compactlogix range and is referenced internally as PartLogic SKU PL26805611250.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Automation Controller |
| Product Line | CompactLogix |
| Part Number | 1769-L30ERM |
| UPC | 885630167084 |
| Weight | 0.75 lbs (0.34 kg) |
| Module Type | Processor Module |
| Communication | Ethernet |
| Communication ports | 2 Ethernet I/P; 1 USB |
| Motion Control over Ethernet I/P | Included |
| Integrated Motion | 4 Axes |
| Memory | 1MB |
| Maximum number of I/O modules supported | 8 Modules |
| Maximum number of I/O banks supported | 3 banks |
| Series | A and B |
| Power supply distance rating | 4 |
| Replacement Terminal Block Part Number | 1769-RTBN18 |
| Vibration | Operating: 10 to 500 Hz, 5G, 0.030 in. peak-to-peak |
| Operating Temperature | 0° to +60°C (+32° to +140°F) |
| Wire Type | Copper-90 degrees Celsius |
| Wire Size (Solid) | 22-14 AWG |
| Wire Size (Stranded) | 22-16 AWG |
| Programming Language | Relay ladder, Structured Text, Function block, SFC |
| Power Dissipation | 4.5 Watts |
| User Memory | 1 MB |
| Non-Volatile memory | 1784-SD1 card with 1 Gb of available memory (shipped with controller) ; 1784-SD2 card with 2 Gb of available memory (available for separate ordering) |
| Mounting | DIN Rail; Panel Mounting |
| UNSPSC | 32151705 |
| Brand | Allen Bradley |
