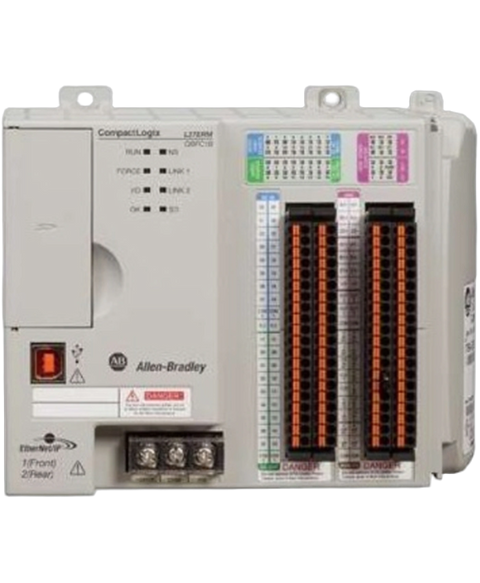

Allen Bradley 1769-L27ERM-QBFC1B
The Allen-Bradley 1769-L27ERM-QBFC1B is a CompactLogix controller that is part of the 5370 L2 CompactLogix Programmable Automation Controller (PAC) family. This controller has Two (2) Ethernet communication ports, with 1MB user memory and supports installation up to Four (4) 1769 Compact I,O modules and One (1) expansion bank.
This Allen Bradley 1769-L27ERM-QBFC1B is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Compactlogix range and is referenced internally as PartLogic SKU PL26868604222.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | CompactLogix Controller |
| Product Line | CompactLogix |
| Part Number | 1769-L27ERM-QBFC1B |
| UPC | 885630101262 |
| Weight | 1.75 lbs (0.79 kg) |
| Memory | 1MB |
| Product Family | 5370 L2 Controller |
| Communication ports | (1) USB; (2) Ethernet I/P; |
| Supported Protocols | Ethernet I/P |
| No. Of Axes over Ethernet | 16 axes |
| No. of Task | 32 Task |
| No. of Program per Task | 100 |
| No. of Embedded Inputs | (16) 24 VDC Sinking / Sourcing |
| No. of Embedded Outputs | (16) 24 VDC Sourcing |
| No. of Analog Inputs | 4 (Differential or Single Ended) |
| No. of Analog Outputs | 2 (Single Ended) |
| No. of HSC outputs | 4 |
| Analog Input Type | • Thermocouple: J, K, T, E, R, S, B, N, and C • Voltage • Current • RTD: Platinum 385, Platinum 3916, Copper 426, Nickel 672, Nickel 618, Nickel-Iron 518 • Resistance |
| Analog Output Type | Voltage: • 0…5V • 1…5V • 0…10V • -10V…+10V Current: • 0…20 mA • 4…20 mA |
| Programming Language | Relay ladder (Safety Task only) , Structured Text, Function block, SFC |
| Mounting | DIN Rail |
| Module Type | Processor Module |
| Communication | Ethernet |
| Replacement Terminal Block | 1769-RTBN18 |
| Wire Type | Copper-90 degrees Celsius |
| Wire Size (Solid) | 22 to 14 AWG |
| Wire Size (Stranded) | 22 to 16 AWG |
| Programming | Relay Ladder, Structured Text, Function Block, SFC |
| Brand | Allen Bradley |
