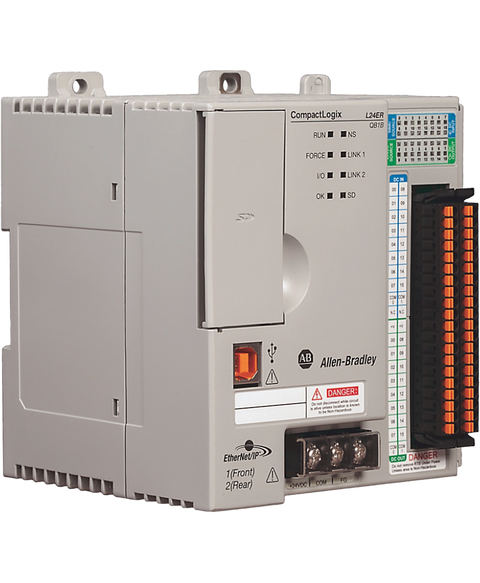

Allen Bradley 1769-L24ER-QB1B
The Allen-Bradley 1769-L24ER-QB1B is a CompactLogix packaged controller from the 5370 CompactLogix family. This controlled has embedded 768Kbytes memory, Two (2) Ethernet communication ports, 1 RS2322 and 1 USB port. It has Sixteen (16) Sinking , Sourcing 24V DC Digital Inputs and Sixteen (16) Sinking 24V DC Digital Output. It supports up to Four (4) Compact I,O modules.
This Allen Bradley 1769-L24ER-QB1B is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Compactlogix range and is referenced internally as PartLogic SKU PL26935673484.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Automation Controller |
| Product Line | CompactLogix |
| Part Number | 1769-L24ER-QB1B |
| UPC | 885630101248 |
| Weight | 2.00 lbs (0.91 kg) |
| Module Type | Processor Module |
| Communication | Ethernet |
| Communication ports | (1) USB; (2) Ethernet I/P; 1 RS232 |
| Supported Protocols | ASCII; DH485; DF1; Ethernet |
| No. Of Axes over Ethernet | 2 axes |
| No. of Task | 32 Task |
| No. of Program per Task | 100 |
| Series | A and B |
| No. of Embedded Inputs | (16) 24 VDC |
| Replacement Terminal Block Part Number | 1769-RTBN18 |
| Programming Language | Relay ladder (Safety Task only) , Structured Text, Function block, SFC |
| Wire Type | Copper-90 degrees Celsius |
| Wire Size (Solid) | 22-14 AWG |
| Memory | 750Kbytes |
| Wire Size (Stranded) | 22-16 AWG |
| Non-Volatile Memory | 1784-SD1 card with 1 Gb of available memory (shipped with controller) 1784-SD2 card with 2 Gb of available memory (available for separate ordering) |
| Mounting | DIN Rail |
| Brand | Allen Bradley |
