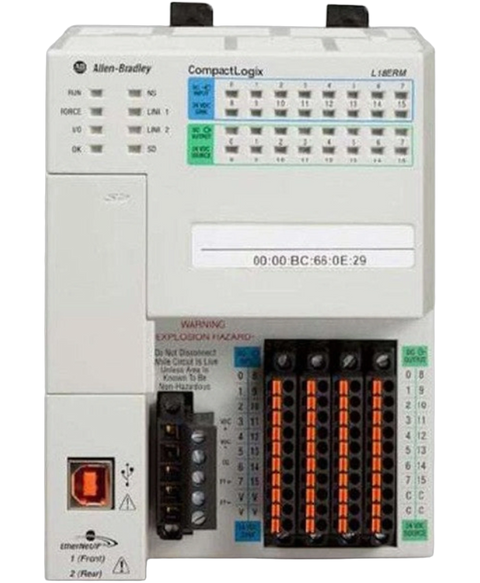

Allen Bradley 1769-L18ERM-BB1B
The Allen-Bradley 1769-L18ERM-BB1B is a CompactLogix 5370 L1 controller. It is part of the CompactLogix Programmable Automation Controller (PAC) product family which features built-in Two (2) Ethernet communication ports and 512Kbytes embedded user memory. Up to Eight (8) 1734 Point I,O modules may be installed with this controller. This controller supports motion control over Ethernet I,P, capable of up to 1 0r 2 motion axes.
This Allen Bradley 1769-L18ERM-BB1B is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Compactlogix range and is referenced internally as PartLogic SKU PL26945134837.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | CompactLogix Controller |
| Product Line | CompactLogix |
| Part Number | 1769-L18ERM-BB1B |
| UPC | 612598968664 |
| Weight | 1.31 lbs (0.60 kg) |
| Product Family | 5370 L1 |
| Communication ports | (1) USB; (2) Ethernet I/P |
| Ethernet topologies | Linear, Star and Device level Ring (DLR) |
| Ethernet nodes | 8 Nodes |
| Maximum number of I/O modules supported | 8 Modules - Point I/O |
| No. of Task | 32 Task |
| No. of Program per Task | 100 |
| No. of Embedded Inputs | (16) 24 VDC |
| Programming Language | Relay ladder (Safety Task only) • Structured Text • Function block • SFC |
| Mounting | DIN Rail |
| Current draw @ 5V DC | 1A |
| Integrated Motion | Supported |
| Motion Axes | 1 or 2 |
| Module Type | Processor Module |
| Communication | Ethernet |
| Input Power | 24 Volts DC |
| Memory | 512 KB |
| Communication Cable | 8-Point |
| Series | A and B |
| Replacement Terminal Block Part Number | 1769-RTBN18 |
| Wire Type | Copper-90 degrees Celsius |
| Wire Size (Solid) | 22 to 14 AWG |
| Brand | Allen Bradley |
